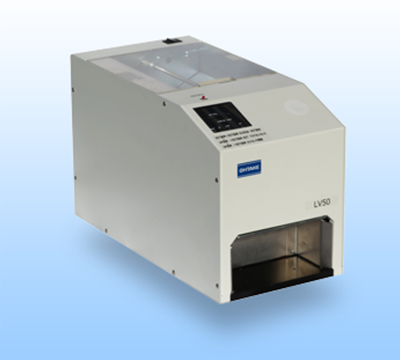

Fixed-quantity Pickup Screw Feeder Ohtake LV Type

Fixed-quantity Pickup Screw Feeder LV Type

Compatible with up to M8 screws
Can be used for M3~M8 screws, with thread length up to 50mm.

Improved large capacity
Provides longer supply time with capacity expansion of 1000cc or 1300c.

Compatible with different manufacturing settings
Simple installation allows applications in various production environments

Multiple screw pick-up solutions available
With manual pick-up tray, lever-access box, or display box.




Supported screw diameter (mm)	Main component type
	LS-HM Series		LS-HR Series		LV Series
	Up to under- head length of 25mm	Up to under- head length of 50mm	Up to under- head length of 25mm	Up to under- head length of 50mm	Up to under- head length of 25mm	Up to under- head length of 50mm
3.0	LS25-HM30	LS50-HM30	LS25-HR30	LS50-HR30	LV25-30	LV50-30
3.5	LS25-HM35	LS50-HM35	LS25-HR35	LS50-HR35	LV25-35	LV50-35
4.0	LS25-HM40	LS50-HM40	LS25-HR40	LS50-HR40	LV25-40	LV50-40
5.0	LS25-HM50	LS50-HM50	LS25-HR50	LS50-HR50	LV25-50	LV50-50
6.0	LS25-HM60	LS50-HM60	LS25-HR60	LS50-HR60	LV25-60	LV50-60
8.0	LS25-HM80	LS50-HM80	LS25-HR80	LS50-HR80	LV25-80	LV50-80

• Product name：LV-25　｜　LV-50
• Dimensions：169(W)×347(D)×229(H)
• Total weight (with rail) ：Approx. 15kgf
• Power supply：AC100V～240V DC15V 1A AC adapter included
• Overload protection：-
• Output signal：-
• Screw size：M3.0～M8.0
• Screw length：Up to 25mm　｜　Up to 50mm
• Capacity：Approx. 1300cc　｜　Approx. 1000cc
• Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver, grounding cable
• Option：Remaining Screw Amount Sensor Please contact us.
