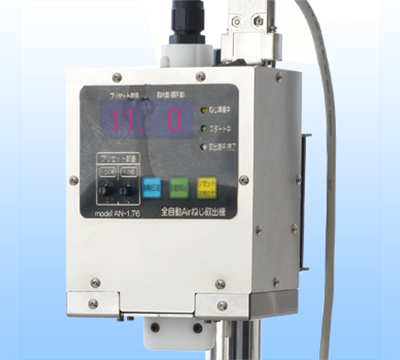

Fixed-quantity Pneumatic Screw Feeder Ohtake BS-C Type

Fixed-quantity Pneumatic Screw Feeder BS-C Type

Providing precise number of screws
Quantitative supplies for manual application, with easily accessible counter panel.

Pneumatic mechanism for efficient screw feeding
Helps to improve working cycle takt time; applicable for steel screws.
Compact size, with maximum size of 1300cc storage available





Supported screw diameter (mm)	Main component type
	BS Series		BS-R Series	BS-D Series	BS-C Series
	Scooping chamber capacity: approx. 280cc	Scooping chamber capacity: approx. 1300cc	-	-	Scooping chamber capacity: approx. 280cc	Scooping chamber capacity: approx. 1300cc
2.0	BS-S20	BS-L20	BS-R20	-	BS-CS20	BS-CL20
2.3	BS-S23	BS-L23	BS-R23	-	BS-CS23	BS-CL23
2.6	BS-S26	BS-L26	BS-R26	-	BS-CS26	BS-CL26
3.0	BS-S30	BS-L30	BS-R30	BS-D30	BS-CS30	BS-CL30
3.5	BS-S35	BS-L35	BS-R35	BS-D35	BS-CS35	BS-CL35
4.0	BS-S40	BS-L40	BS-R40	BS-D40	BS-CS40	BS-CL40
5.0	BS-S50	BS-L50	BS-R50	BS-D50	BS-CS50	BS-CL50
6.0	BS-S60	BS-L60	-	BS-D60	BS-CS60	BS-CL60

• Product name：BS-CS　｜　BS-CL
• Dimensions：118(W)×310(D)×237(H)　｜　169(W)×436(D)×270(H)
• Total weight (with rail) ：Approx. 4kgf　｜　Approx. 10kgf
• Power supply：AC100V～240V DC15V 1A AC adapter included
• Overload protection：-
• Delivery cycle time：M6X25/3M
• Screw size：M2.0～M6.0
• Screw length：Up to 25mm
• Accessories：Operation Manual, AC Adapter, hex wrench, adjustment driver, grounding cable
