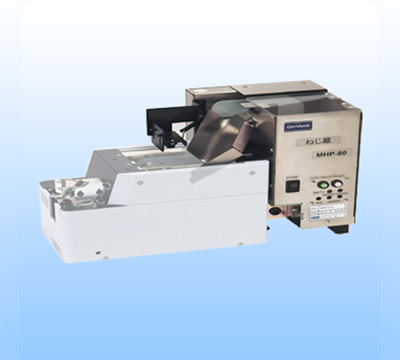

Fixed-quantity Pneumatic Screw Feeder Ohtake MHP-80 Type
- Extends operation time for screw feeders
- Magnetic mechanism for application of steel screws
- Easy Installation
- Reduction of time and labor in management
Fixed-quantity Pneumatic Screw Feeder MHP-80 Type
Extends operation time for screw feeders
Increases capacity of regular feeder by 800cc
Magnetic mechanism for application of steel screws
Easy Installation
Simply to be placed above the screw feeder, conserving table space
Reduction of time and labor in management
Automatically supplies adequate amount of screw, with adjustable timer for fine adjustment.
Extends operation time for screw feeders
Increases capacity of regular feeder by 800cc
Magnetic mechanism for application of steel screws
Easy Installation
Simply to be placed above the screw feeder, conserving table space
Reduction of time and labor in management
Automatically supplies adequate amount of screw, with adjustable timer for fine adjustment.
| MHP-80 | Supported screw feeder |
| Model number | |
| MHP-80S | NSB / NSR / NSBI / NSRI / NSRI-B |
|---|---|
| MHP-80J | NJ / NJR |
| MHP-80F | FM-36 / FME-36 |
| MHP-80M | OM-26M / OM-26R / OM-26RB |
- Product name：MHP-80
- Dimensions：156(W)×150(D)×212(H)
- Total weight (with rail) ：Approx. 2.9kgf
- Power supply：AC100V~240V DC15V 1A AC adapter included
- Screw size：M2.0~M6.0 (Due to magnetic mechanism, this product is only compatible with steel screws.)
- Screw length：Up to 25mm
- Capacity：Approx. 800cc
- Accessories：Operation Manual, AC Adapter, ネジ飛び出し防止カバー, adjustment driver
