Screwing

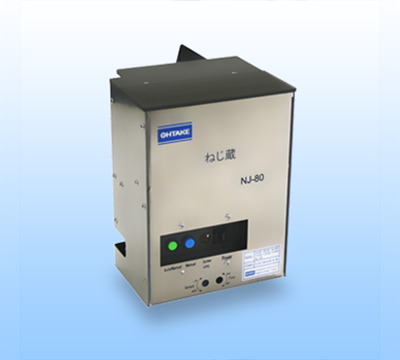

Fixed-quantity Pneumatic Screw Feeder Ohtake NJ-80／SR-80 Type
- Extends operation time for screw feeders
- Easy Installation
- Reduction of time and labor in management
Fixed-quantity Pneumatic Screw Feeder NJ-80／SR-80 Type
Extends operation time for screw feeders
Increases capacity of regular feeder by 800cc
Easy Installation
Simply to be placed behind the screw feeder
Reduction of time and labor in management
Automatically supplies adequate amount of screw, with adjustable timer for fine adjustment.
Extends operation time for screw feeders
Increases capacity of regular feeder by 800cc
Easy Installation
Simply to be placed behind the screw feeder
Reduction of time and labor in management
Automatically supplies adequate amount of screw, with adjustable timer for fine adjustment.
| SR-80 | Supported screw feeder |
| Model number | |
| SR-80 | NSB / NSR / NSBI / NSRI / NSRI-B |
| NJ-80 model | Supported screw feeder |
| Model number | |
| NJ-80 | NJ / NJR |
|---|---|
| NJ-80F | FM-36 / FME-36 |
- Product name：NJ-80 ｜ SR-80
- Dimensions：142(W)×191(D)×188(H) ｜ 142(W)×191(D)×189～198(H)
- Total weight (with rail) ：Approx. 2.9kgf
- Power supply：AC100～240V DC15V 1A AC adapter included
- Screw size：M2.0～M6.0
- Screw length：Up to 15mm
- Capacity：Approx. 800cc
- Accessories：Operation Manual, AC Adapter, adjustment driver
