Screwing
Fixed-quantity Pneumatic Screw Feeder Ohtake T-510 Type
- Extends operation time for screw feeders
- Easy Installation
- Reduction of time and labor in management

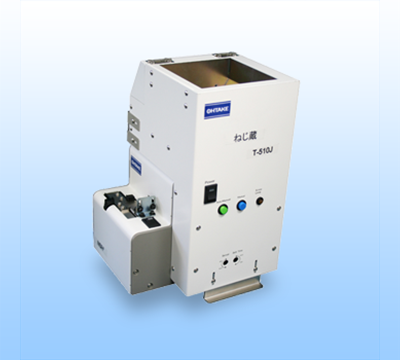

Fixed-quantity Pneumatic Screw Feeder T-510 Type
Extends operation time for screw feeders
Increases capacity of regular feeder by 400-800cc
Easy Installation
Simply to be placed above the screw feeder, conserving table space
Reduction of time and labor in management
Automatically supplies adequate amount of screw, with adjustable timer for fine adjustment.
Extends operation time for screw feeders
Increases capacity of regular feeder by 400-800cc
Easy Installation
Simply to be placed above the screw feeder, conserving table space
Reduction of time and labor in management
Automatically supplies adequate amount of screw, with adjustable timer for fine adjustment.
| T-510 | Supported screw feeder |
| Model number | |
| T-510S | NSB / NSR / NSBI / NSRI / NSRI-B |
|---|---|
| T-510J | NJ / NJR |
| T-510F | FM-36 / FME-36 |
- Product name：T-510F/J ｜ T-510S
- Dimensions：130(W)×171(D)×245(H)
- Total weight (with rail) ：Approx. 3.1kgf
- Power supply：AC100～240V DC15V 1A AC adapter included
- Screw size：M1.0～M6.0
- Screw length：Up to 25mm ｜ Up to 20mm
- Capacity：400cc
- Accessories：Operation Manual
