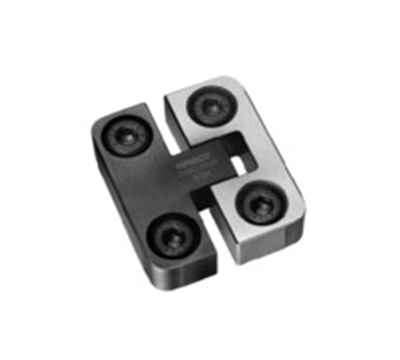

Flat locating unit

Hasco Z086/b1xb2
~56 HRC
1.2162
DLC coated

add to cart Inquiry Now

Flat locating unit

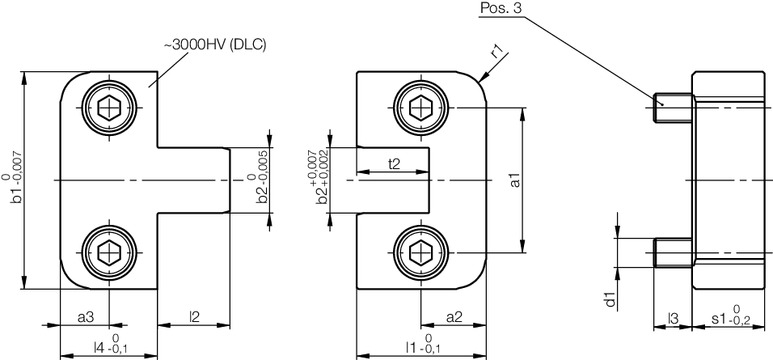

254761637464971116-DESKTOP-DEFAULT

Pos3	r1	s1	t2	a3	a2	a1	l4	l3	l2	l1	b2	b1	Product
Z31/5x12	4	10	11	7	8,5	26	13,8	7,5	11	16,8	10	40	Z086/40x10
Z31/6x14	5	12	12	8,5	11	30	16,8	8,5	12	21,8	12	46	Z086/46x12
Z31/6x18	6	16	16	11	13,5	34	21,8	8,5	16	26,8	14	50	Z086/50x14
Z31/8x22	8	20	20	13,5	18	40	26,8	10,5	20	35,8	18	60	Z086/60x18
Z31/10x30	10	25	25	18	20	50	35,8	15,5	25	39,8	24	76	Z086/76x24

The HASCO flat locating unit Z086/... ensures the reliable centring of injection and compression moulds through its tight fit. It assumes short and precise guidance functions in the mould parting plane.The DLC coating ensures low friction with excellent slip properties.

High precision due to a very tight fit
Space-saving lateral mounting
Low-maintenance through DLC coating
Locked against transverse forces
Short guide
Easy lateral mounting
