Fluid feed tube connector Musashi

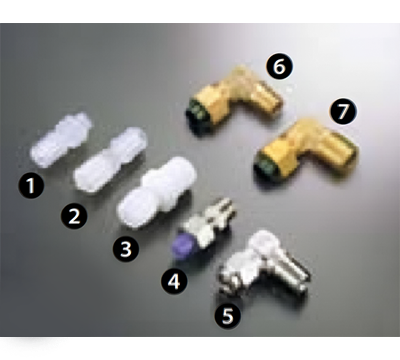

These connectors are used to connect the fluid feed tube to a syringe, needle, valve, tank, and cartridge. Select a connector that matches the fluid material characteristics and the connection pattern.
- J-R-3
- J-RT-3
- J-B2B-6
- J-46BS
- J-L1B-6
- J-L1B-48HP
- J-L2B-48HP
| Item name | Model | Shape | Tube size | Connector dia. | Material | Applications |
| Fluid feed tube connector-1 | J-R-3 | Straight | OD 3 mm | Double thread screwed luer lock plug | Fluorine resin | For connection between syringe and tube |
| Fluid feed tube connector-2 | J-RT-3 | Straight | OD 3 mm | Double thread screwed luer lock socket | Fluorine resin | For connection between nozzle and tube |
| Fluid feed tube connector-3 | J-B2B-6 | Straight | For φ6×4 | R1/4 | Fluorine resin | For connection between valve or suction pipe for tank and tube |
| Fluid feed tube connector-4 | J-46BS | Straight | For φ6×4 | R1/8 | Brass | |
| Fluid feed elbow tube connecto-5 | J-L1B-6 | Elbow | For φ6×4 | R1/8 | Stainless steel | |
| Fluid feed elbow tube connecto-6 | J-L1B-48HP | Elbow | For φ8×4 | R1/8 | Brass | For connection between high pressure valve or suction pipe -7 J-L2B-48HP Elbow For φ8×4 R1/4 Brass for tank and tube |
| Fluid feed elbow tube connecto-7 | J-L2B-48HP | Elbow | For φ8×4 | R1/4 | Brass |
