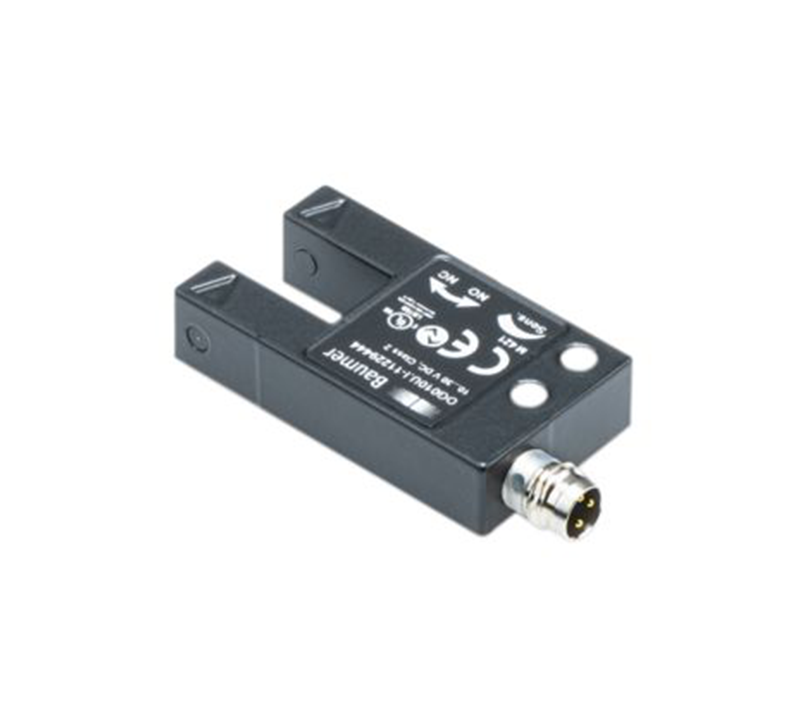

Sensor
| General Data | |
|---|---|
| Type | Through beam sensor |
| Object size | > 0,4 mm |
| Repeat accuracy | < 0,02 mm |
| Hysteresis | < 0,1 mm |
| Sensitivity adjustment | Potentiometer, 270° IO-Link |
| Light source | Pulsed infrared diode |
| Wave length | 660 nm |
| Light indicator | LED yellow |
| Communication Interface | |
| IO-Link | Yes |
| Interface | IO-Link V1.1 |
| Baud rate | 38,4 kBaud (COM 2) |
| Electrical Data | |
| Response time / release time | < 0.05 ms |
| Switching frequency | < 10000 Hz, default < 5000 Hz < 250 Hz < 14000 Hz |
| Voltage supply range +Vs | 10 ... 30 VDC |
| Current consumption max. (no load) | 30 mA |
| Output function | Light / dark operate switchable |
| Output circuit | Push-pull / IO-Link |
| Voltage drop Vd | < 2,8 VDC |
| Output current | < 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical Data | |
| Width / diameter | 25 mm |
| Fork width Sb | 10 mm |
| Height / length | 45 mm |
| Penetration depth | 16.8 mm |
| Depth | 10 mm |
| Type | U profile |
| Housing material | Die-cast zinc |
| Connection types | Connector M8, 3 pin |
| Ambient Conditions | |
| Operating temperature | -25 ... +60 °C |
| Protection class | IP 67 |
