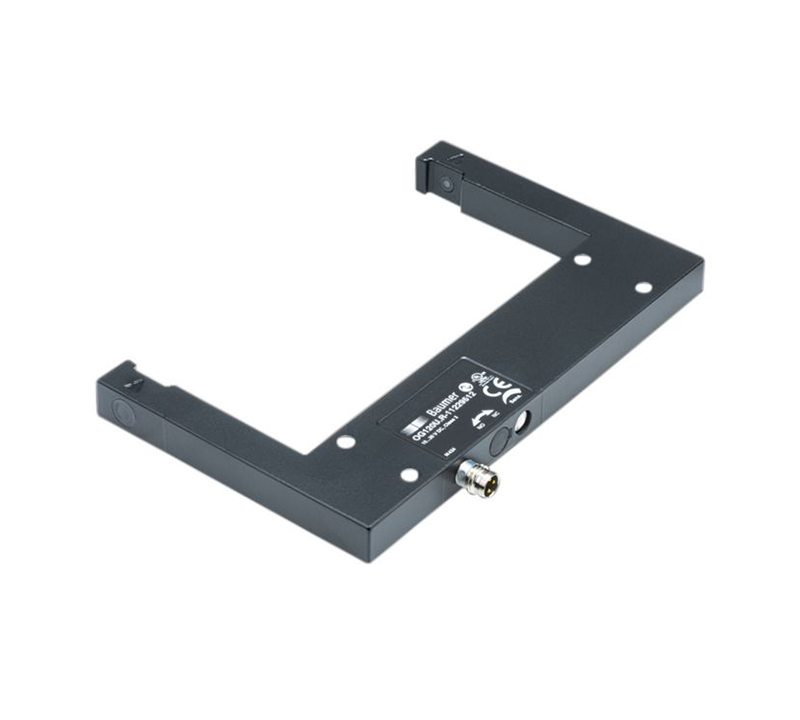

Sensor
| General Data | |
|---|---|
| Type | Through beam sensor |
| Object Size | > 0.8 mm |
| Repeat Accuracy | < 0.06 mm |
| Hysteresis | < 0.25 mm |
| Sensitivity Adjustment | Potentiometer, 270° IO-Link |
| Light Source | Pulsed red LED |
| Wave Length | 660 nm |
| Light Indicator | LED yellow |
| Communication Interface | |
| IO-Link | Yes |
| Interface | IO-Link V1.1 |
| Baud Rate | 38.4 kBaud (COM 2) |
| Electrical Data | |
| Response Time / Release Time | < 0.1 ms |
| Switching Frequency | < 5000 Hz, default < 1500 Hz < 250 Hz < 8000 Hz |
| Voltage Supply Range +Vs | 10 ... 30 VDC |
| Current Consumption Max. (no load) | 30 mA |
| Output Function | Light / dark operate switchable |
| Output Circuit | Push-pull / IO-Link |
| Voltage Drop Vd | < 2.8 VDC |
| Output Current | < 200 mA |
| Short Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Mechanical Data | |
| Width / Diameter | 144 mm |
| Fork Width Sb | 120 mm |
| Height / Length | 90 mm |
| Penetration Depth | 60 mm |
| Depth | 12 mm |
| Type | U profile |
| Housing Material | Die-cast zinc |
| Connection Types | Connector M8, 3 pin |
| Ambient Conditions | |
| Operating Temperature | -25 ... +60 °C |
| Protection Class | IP 67 |
