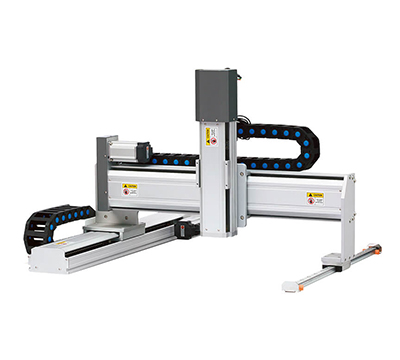

GT Series Gantry Dispensing Robot 331GT
Features
- Many projects also require all moving axes to be above the workstation, the DT-GS series provides that capability.
- AC servo motors with ball screw design.
- Available in three and four axis models.
- Repeatability of 0.01mm.
- Highly rigid frame structure.
- Open access design for in-line operation.
- Customer design is available.
- Digital Servo controlled and ball screw driver.
- Repeatability 0.01mm for accurate dispensing.
- Dot, Lines, Arc etc. and 3D dispensing path is available.
- A hand-held Teach Pendant is provided for simple and intuitive
- programming functions.
- Apply adhesives, cyanoacrylates, silicone, RTV, anaerobic resin, epoxy, UV cure formulations and many more fluids.
- Windows SRE software is available for CAD file input (optional).
Specification
| Model | 331GT | 441GT | 551GT |
|---|---|---|---|
| Working Area X / Y / Z (mm) | 300 / 300 / 100 | 400 / 400 / 100 | 500 / 500 / 100 |
| Load Worktable Y-Axis / Z-Axis | 30 kg / 10 kg | ||
| Maximum Speed XY / Z (mm/sec) | 0.1 ~ 600 / 300 | ||
| Resolution | 0.001 mm / Axis | ||
| Repeatability | +/- 0.01 mm / Axis | ||
| Data Memory Capacity | 4000 points / program | ||
| Data Storage Type | PC HD Storage | ||
| Display | TFT LCD | ||
| Driver System | servo motor | ||
| Control Method | PTP & CP | ||
| Linear / Circular Interpolation | 3 axis | ||
| Teaching Method | Teach pendant | ||
| I/O Signals | 8 Inputs / 8 Outputs | ||
| External Control Interface | RS232 | ||
| Power Supply | 220 VAC | ||
| Working Temperature | 0 - 40°C | ||
| Relative Humidity (no condensation) | 20 - 90% No condensation | ||
| Dimensions (WxDxH mm) | 650 x 750 x 500 | 750 x 850 x 550 | 850 x 950 x 550 |
| Robot Weight | 60 kg | 70 kg | 80 kg |
