Guide bush, self-lubricating

Hasco Z14/d1xl2xl3
-40°C - +250°C
outside 390 HV / inside 60HB
Steel / sintered metal

add to cart Inquiry Now

Guide bush, self-lubricating

guide-bush-self-lubricating-z14-d1xl2xl3-2

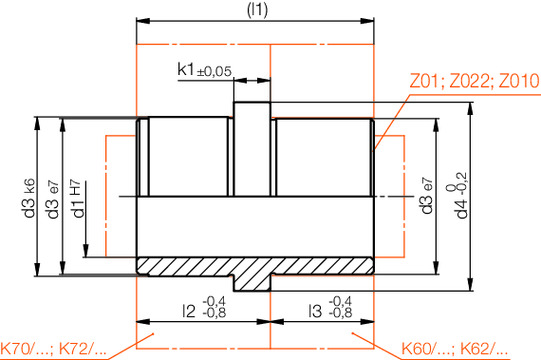

k1	l1	d4	d3	d1	l2	l3	Product
6	21	16	14	10	12	9	Z14/10x12x9
6	26	16	14	10	17	9	Z14/10x17x9
6	26	23	18	12	17	9	Z14/12x17x9
6	26	25	20	14	17	9	Z14/14x17x9
6	39	25	20	14	22	17	Z14/14x22x17
6	26	25	20	15	17	9	Z14/15x17x9
6	29	31	26	18	17	12	Z14/18x17x12
6	39	31	26	18	22	17	Z14/18x22x17
6	44	31	26	18	27	17	Z14/18x27x17
6	39	31	26	20	22	17	Z14/20x22x17
6	39	35	30	22	22	17	Z14/22x22x17
6	49	35	30	22	27	22	Z14/22x27x22
6	39	35	30	24	22	17	Z14/24x22x17
6	49	35	30	24	27	22	Z14/24x27x22
6	63	35	30	24	36	27	Z14/24x36x27
6	49	47	42	30	27	22	Z14/30x27x22
6	63	47	42	30	36	27	Z14/30x36x27
6	73	47	42	30	46	27	Z14/30x46x27
6	63	47	42	32	36	27	Z14/32x36x27
6	82	60	54	40	46	36	Z14/40x46x36

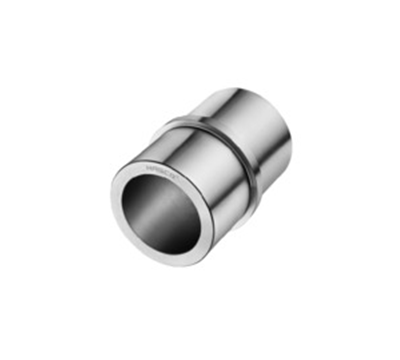

The HASCO guide bush Z14/... has a sliding layer in sintered metal with a fine-pored solid lubricant and embedded oil.Its self-lubricating properties make the Z14/... particularly suitable for low-maintenance applications.The guide bushes are specially aligned to the HASCO ejector packages.

Sliding layer with a high wear resistance
Integral solid lubricant reservoirs
Aligned to the HASCO ejector packages
Integral solution for dynamic dry operation
Embedded oil
Steel body
Minimal outlay on maintenance
Available ex stock
Easily exchanged for the Z13W/...
