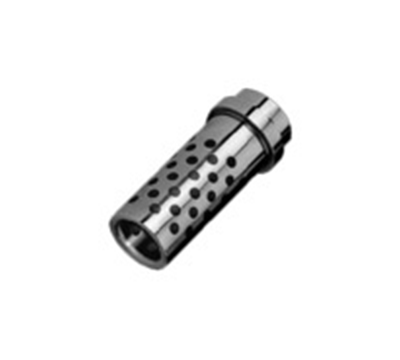

Guide bush, stepped location head, self-lubricating
- Hasco Z1000W/l2xd1
- max. 200°C
- 2.0975
Guide bush, stepped location head, self-lubricating

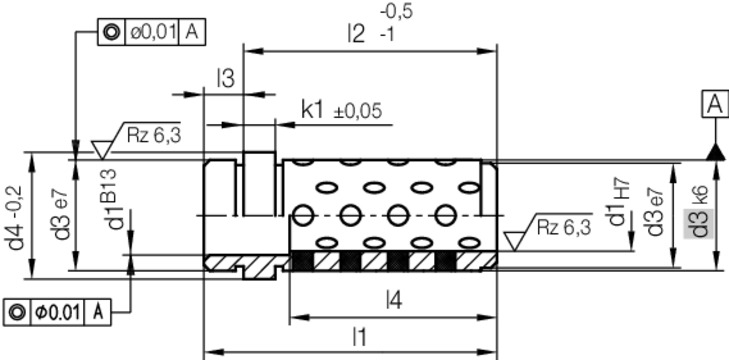

| k1 | l4 | l3 | l1 | d4 | d3 | l2 | d1 | Product |
|---|---|---|---|---|---|---|---|---|
| 3 | - | 5 | 17 | 16 | 14 | 12 | 9 |
Z1000W/12x9
|
| 3 | - | 5 | 22 | 16 | 14 | 17 | 9 |
Z1000W/17x9
|
| 3 | 20 | 5 | 27 | 16 | 14 | 22 | 9 |
Z1000W/22x9
|
| 3 | 20 | 5 | 32 | 16 | 14 | 27 | 9 |
Z1000W/27x9
|
| 3 | 20 | 5 | 41 | 16 | 14 | 36 | 9 |
Z1000W/36x9
|
| 3 | 20 | 5 | 51 | 16 | 14 | 46 | 9 |
Z1000W/46x9
|
| 3 | 20 | 5 | 61 | 16 | 14 | 56 | 9 |
Z1000W/56x9
|
| 3 | 20 | 5 | 71 | 16 | 14 | 66 | 9 |
Z1000W/66x9
|
