Mold Parts

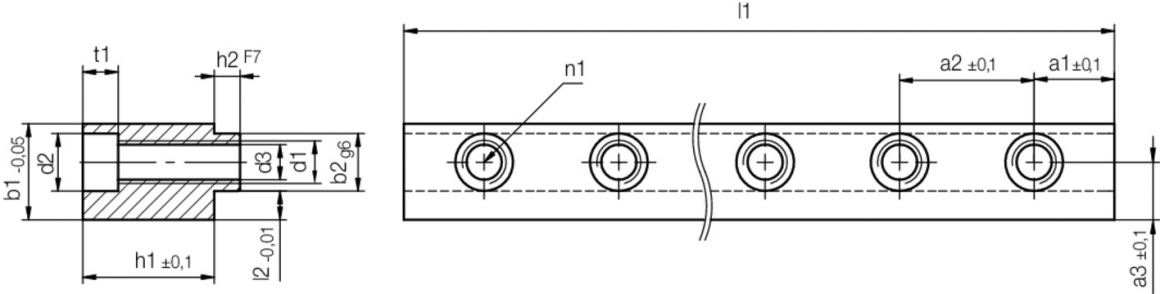

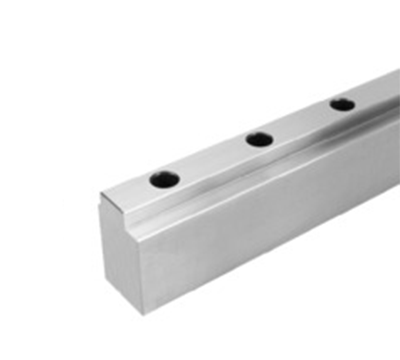

Guide strip, can be cut as required
| n1 | h2 | t1 | a3 | a2 | a1 | b2 | l2 | d3 | d2 | d1 | b1 | h1 | l1 | Product |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | 4 | 4 | 10 | 35 | 10 | 8 | 6 | 5,3 | 10 | M6 | 16 | 7 | 300 |
Z1853/16x7x300
|
| 9 | 4 | 5,7 | 10 | 35 | 10 | 8 | 6 | 5,3 | 10 | M6 | 16 | 11 | 300 |
Z1853/16x11x300
|
| 12 | 5 | 6,8 | 12 | 35 | 17,5 | 10 | 7 | 6,8 | 11 | M8 | 20 | 14 | 420 |
Z1853/20x14x420
|
| 10 | 6 | 9 | 15 | 50 | 25 | 14 | 8 | 8,5 | 15 | M10 | 25 | 25 | 500 |
Z1853/25x25x500
|
| 10 | 8 | 11 | 18 | 50 | 25 | 18 | 9 | 10,5 | 18 | M12 | 30 | 41 | 500 |
Z1853/30x41x500
|
