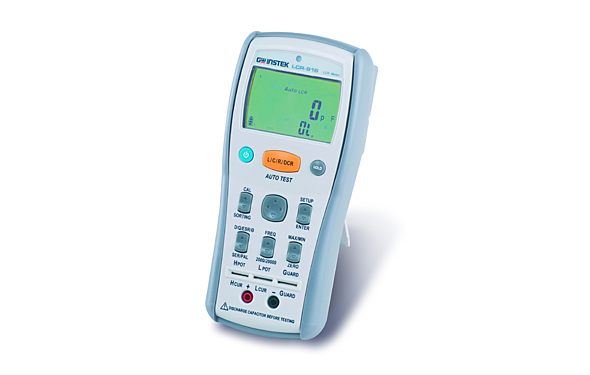

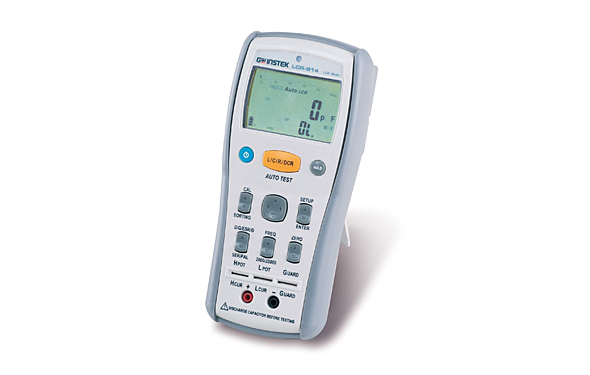

Handheld LCR Meter LCR-900

Description

The LCR-916/915/914 are smart, convenient and fully-functional dual display handheld LCR meters. The test frequency extends as high as 100 kHz/10kHz, providing greater flexibility to test a wider range of components.The LCR-916/915/914 use a dual 20,000 /2,000 count display. The 20,000 count display is used for displaying the primary parameters such as capacitance, inductance and resistance as well as DC resistance measurement, and a 2,000 count display is for secondary parameters such as Q, D, ESR and RP measurement. Secondary measurements can also be combined with the primary measurement while the primary measurement is still being taken.
The LCR-916/915/914 provide two measurement methods, 2 wire and 5 wire measurement. The LCR-916/915/914 also come with a host of various standard or optional accessories to assist the testing a number of different component types. The meters also include handy functions such as data hold, tolerance sorting, zero mode and Min/Max (for LCR-916 only).
The meter’s USB interface can be used to log data to a PC using the LCR900 software and the DC 5V is provided to power the meter.

With the LCR-916/915/914, you can perform quick and basic LCR measurements with precision at an affordable price.

LCR-900 Specifications

The specifications apply when the LCR-900 is powered on for at least 30 minutes under +18°C~+28°C.



	LCR-916	LCR-915	LCR-914
TEST FREQUENCY
	100Hz/120Hz/1k/10k/100kHz selectable	100Hz/120Hz/1k/10kHz Selectable	100Hz/120Hz/1kHz Selectable
FULL SCALE
Main Display	20,000/2,000 counts selectable
Sub Display	2,000 counts
INDUCTANCE
Range	20μH ~ 20kH depends on the selected test frequency
Best Accuracy	+(0.2% rdg + 2 digits)
Resolution	0.001μH ~ 0.001kH depends on selected range
CAPACITANCE
Range	20pF ~ 20mF depends on the selected test frequency
Best Accuracy	+(0.2% rdg + 2 digits)
Resolution	0.001pF ~ 0.001mF depends on selected range
RESISTANCE
Range	20Ω ~ 200MΩ depends on the selected test frequency
Best Accuracy	+(0.2% rdg+ 2 digits)
Resolution	0.001Ω ~ 0.01MΩ depends on selected range
DC RESISTANCE
Range	200Ω ~ 200MΩ
Best Accuracy	+(0.2% rdg+ 2 digits)
Resolution	0.01Ω ~ 0.01MΩ depends on selected range
QUALITY FACTOR (Q)
Range	0.000 ~ 999
Accuracy	2 x (main parameter accuracy)
Best Resolution	0.001
DISSIPATION FACTOR (D)
Range	0.000 ~ 999
Accuracy	2 x (main parameter accuracy)
Best Resolution	0.001
PHASE ANGLE (θ)
Range	-90°~ 90°
Accuracy	+(0.2% rdg+ 5 digits)
Resolution	0.1°
MEASUREMENT CIRCUIT
Parallel or Series selectable
AUTO LCR MODE
Automatically identifies and measures the DUT when the meter is switch on
SORTING MODE
+0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable
OTHER FUNCTIONS
Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar
DISPLAY
LCD mono display
INTERFACE
USB
POWER SOURCE
AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable)
DIMENSIONS & WEIGHT
95(W) × 207(H) × 52(D) mm, Approx. 630g

Accessories

Included Accessories

User manual x1, Battery x1


Optional Accessories

Opt.01 4Wire DIP test lead
Opt.02 Accessory Pack for LCR-915
Opt.03 Accessory Pack for LCR-914
Opt.04 Magnetic Hang kit for LCR-914


	LCR-916	LCR-915	LCR-914
Shorting Cube	Standard	Standard	Standard
Alligator Clip Set	Standard	Standard	Standard
Magnetic Hang Kit	Standard	Standard	Opt.04
4Wire SMD Test Probe	Standard	Opt. 02	Opt. 03
AC Power Adapter	Standard	Opt. 02	Opt. 03
USB Cable	Standard	Opt. 02	Opt. 03
PC Software (CD)	Standard	Opt. 02	N/A
4Wire DIP Clip Set	Opt. 01	Opt. 01	Opt. 01
