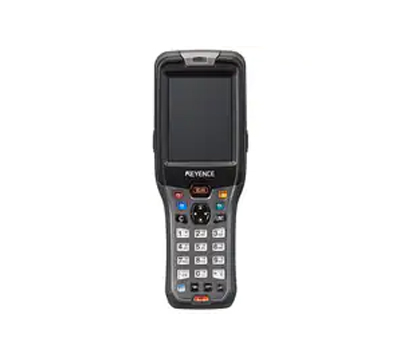

Handheld Terminal

Model

BT-W85G

Type

Camera type

Controller

CPU

ARM Cortex^®-A8 (800MHz)

OS

Microsoft^® Windows^® Embedded Compact 7

Main memory

RAM

256 MB (disk area: 32 MB)

ROM

512 MB (disk area: 222 MB), flash-ROM

Display

LCD

Display method

2.7-inch transmissive TFT colour LCD

Resolution (number of dots)

240 (W) x 320 (H) (QVGA)

Number of display colours

65536

Font

MS P Gothic, MS UI Gothic, MS Gothic, Segoe UI, Courier New, Symbol, Tahoma, Times New Roman, Wingdings * Simsun and Nsimsun need to be installed

Backlight

High-intensity white LED

Operation confirmation LED

3-colour LED (red, green, blue, yellow, cyan, magenta, white)

Operations

Touch Panel

Analogue resistive-film method (reinforced glass specifications)

Hard key

Type

Set of arrow keys x 1 (4 directions), trigger keys x 3 (centre x 1, side x 2), function keys x 8 (F1 key, F2 key, F3 key, F4 key, Fn key, Tab key, character key, SFT key), data input keys x 14 (0 to 9 keys, ENT key, clear key, minus key, symbol key), power key x 1

Backlight

LED (orange)

Scanner

Optical characteristics

Reading light source

High-intensity red LED

Pointer light source

Visible semiconductor laser (655 nm),
output: 390 µW, Class 1 laser product (IEC60825-1)

Scanning rate

-

Minimum resolution

2D code: 0.191 mm
Barcode: 0.127 mm

Reading distance

35 to 270 mm (CODE39 narrow bar width: 0.508 mm)
40 to 190 mm (CODE39 narrow bar width: 0.254 mm)
25 to 205 mm (QR cell size: 0.508 mm)
75 to 140 mm (QR cell size: 0.254 mm)

Reading width/view range

81 x 51 mm (reading distance: 110 mm)

PCS

-

Supported codes

JAN/EAN/UPC (add-on code support), CODE128, GS1-128, CODE39, NW-7(Codabar), CODE93, ITF, COOP 2of5, 2of5(Industrial 2of5), QR, Micro QR, DataMatrix (ECC200), PDF417, GS1 DataBar, Composite

Communication

Wireless LAN communication

Wireless standards

IEEE802.11b / g / n

Radio frequency

2.4 GHz (b, g, n: CHs 1 to 13)

Communication distance

Indoor: 100 m (line-of-sight), Outdoor: 200 m (line-of-sight) (when 11/b/g/n is used)

Security methods

Security: WEP (64/128-bit)/WPA/WPA2
WPA encryption method: TKIP/AES
Authorisation method: PSK/EAP-TLS/PEAP-MSCHAP-V2

Bluetooth communication

Wireless standards

Bluetooth^® V2.1 + EDR

Supported profiles

SPP, PAN (PANU), FTP (Client), HSP (AG), HID (Host/Device)

Communication distance

Approx. 10 m (line-of-sight)

External recording media

Supported media

microSD or microSD (SDHC)

Supported capacity

32 GB max.

Power supply

Main battery

Type

Dedicated lithium ion battery pack

Capacity

2450 mAh

Continuous usage time

Charge mode 1

Approx. 20 hours^*1

Charge mode 2

Approx. 25 hours^*1

Charge mode 3

Approx. 22 hours^*1

Charging time

Charge mode 1

Approx. 6.0 hours (normal temperature)

Charge mode 2

Approx. 4.5 hours (normal temperature)

Charge mode 3

Backup battery

Clock

Built-in lithium secondary battery: approx. 1 month^*2

RAM data

Electric double-layer capacitor: approx. 4 minutes^*2

Others

Buzzer

Scale: 16 levels, Volume: 3 levels

Vibration function

Available

Calendar/clock

Automatic calendar (year, month, day, hour, minute, second; up to year 2079), accurate within 80 seconds per month (normal temperature)

Environmental resistance

Enclosure rating

IP64 (IEC60529)

Ambient temperature

-20 to +50 °C (No freezing)^*3

Storage temperature

-20 to +60 °C (No freezing)

Relative humidity

20 to 85 % RH (No condensation)

Storage relative humidity

Drop resistance

Onto concrete from a height of 2.5 m^*4

EMI

VCCI Class A

Accessories

Hand strap, stylus pen

Dimensions

173 x 61.6 x 40.0 (30.3) mm
(The value in parenthesis is the grip dimension.)

Weight

Approx. 227 g (with rechargeable battery pack attached)
