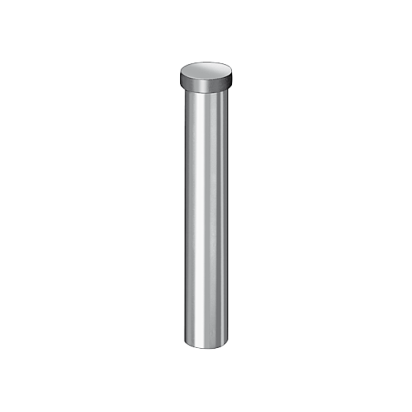

HASCO Cutting Punch Z475/d1xl1 (DIN ISO 8020-A)
CHASO/ CUTTING PUNCHES

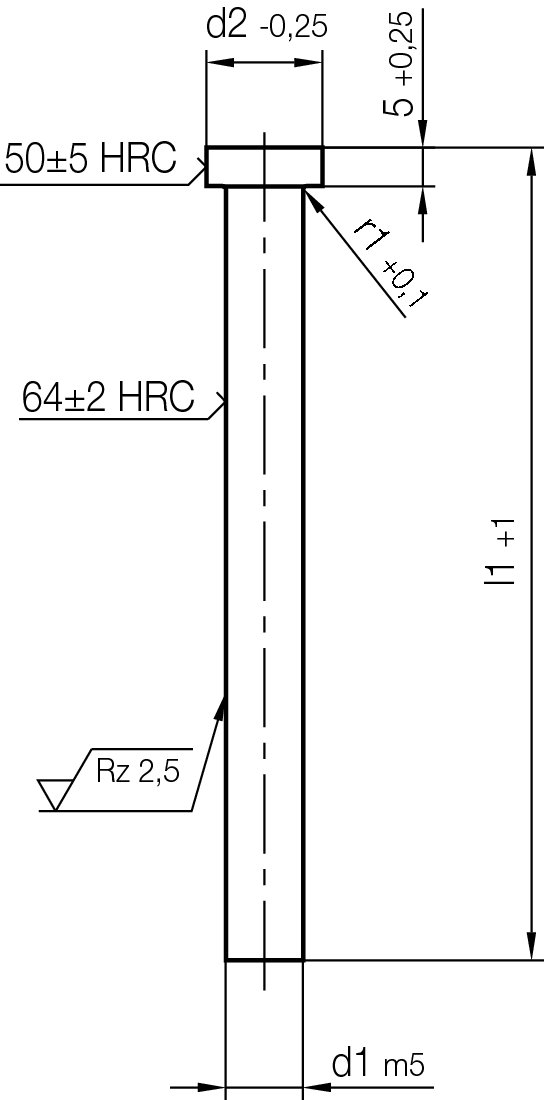

Z475/d1xl1 (DIN ISO 8020-A)
Stamping punch, cylindrical head
Z475/d1xl1 (DIN ISO 8020-A)
Stamping punch, cylindrical head
Z475/d1xl1
HSS
DIN ISO 8020-A
HSS
DIN ISO 8020-A
| r1 | d2 | d1 | l1 | Product |
| 0,25 | 8 | 5 | 71 | Z475/5x71 |
| 80 | Z475/5x80 | |||
| 9 | 6 | 71 | Z475/6x71 | |
| 80 | Z475/6x80 | |||
| 100 | Z475/6x100 | |||
| 11 | 8 | 71 | Z475/8x71 | |
| 80 | Z475/8x80 | |||
| 100 | Z475/8x100 | |||
| 13 | 10 | 71 | Z475/10x71 | |
| 80 | Z475/10x80 |
