HASCO Ejector Pin Z412/d1xl1 (DIN 1530-1)

HASCO EJECTOR PIN Z412/d1xl1
(DIN 1530-1)
WAS (~1.2343)

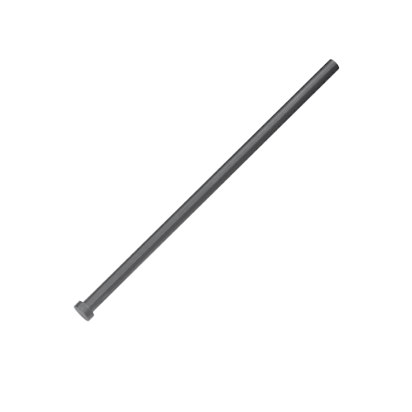

Ejector pin, hardened, plasma-nitrided, oxidised


The innovative HASCO ejector configurator enables users to readily configure ejector pins online in customized lengths.
This tool considerably simplifies and speeds up the ordering process.

Special  Features:
• Different diameters and freely definable lengths to choose from in a wide range of tolerance levels
• Ready-to-install, precision tolerances of up to ± 0.01mm
• Transparent, user-friendly process
• Delivery time and customized price are displayed directly
• Easy transfer to the shopping cart



r1	k1	d2	d1	l1	Product
0,2	1,5	3	1,5	100	Z412/1,5x100
				125	Z412/1,5x125
				160	Z412/1,5x160
	2	4	2	100	Z412/2x100
				125	Z412/2x125
				160	Z412/2x160
				200	Z412/2x200
0,3	3	6	3	100	Z412/3x100
				125	Z412/3x125
				160	Z412/3x160
				200	Z412/3x200
				250	Z412/3x250
		8	4	100	Z412/4x100
				125	Z412/4x125
				160	Z412/4x160
				200	Z412/4x200
				250	Z412/4x250
		10	5	100	Z412/5x100
				125	Z412/5x125
				160	Z412/5x160
				200	Z412/5x200
				250	Z412/5x250
0,5	5	12	6	100	Z412/6x100
				125	Z412/6x125
				160	Z412/6x160
				200	Z412/6x200
				250	Z412/6x250
				315	Z412/6x315
		14	8	100	Z412/8x100
				125	Z412/8x125
				160	Z412/8x160
				200	Z412/8x200
				250	Z412/8x250
				315	Z412/8x315
		16	10	100	Z412/10x100
				125	Z412/10x125
				160	Z412/10x160
				200	Z412/10x200
				250	Z412/10x250
				315	Z412/10x315
0,8	7	18	12	100	Z412/12x100
				125	Z412/12x125
				160	Z412/12x160
				200	Z412/12x200
				250	Z412/12x250
				315	Z412/12x315
		22	16	100	Z412/16x100
				125	Z412/16x125
				160	Z412/16x160
				200	Z412/16x200
				250	Z412/16x250
				315	Z412/16x315
				400	Z412/16x400
