Mold Parts

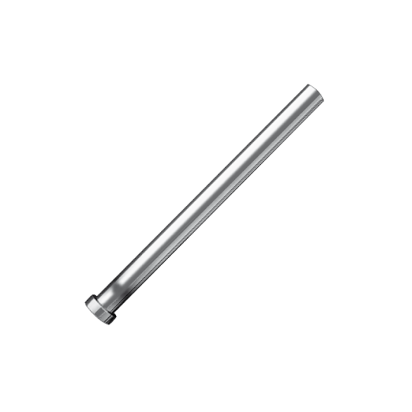

HASCO EJECTOR PIN Z413/d1xl1
~1.4125
DIN 1530-1
~1.4125
DIN 1530-1
The innovative HASCO ejector configurator enables users to readily configure ejector pins online in customized lengths.
This tool considerably simplifies and speeds up the ordering process.
Special Features
- Different diameters and freely definable lengths to choose from in a wide range of tolerance levels
- Ready-to-install, precision tolerances of up to ± 0.01mm
- Transparent, user-friendly process
- Delivery time and customized price are displayed directly
- Easy transfer to the shopping cart

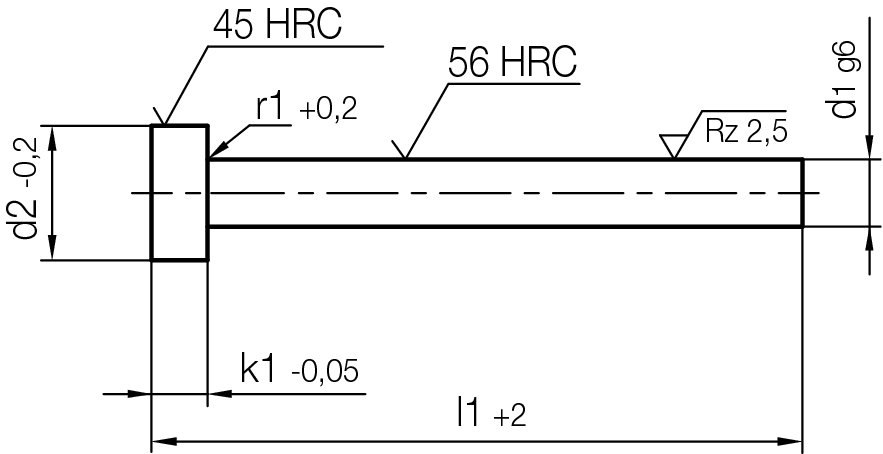

| r1 | k1 | d2 | d1 | l1 | Product |
| 0,2 | 2 | 4 | 2 | 100 | Z413/2x100 |
| 160 | Z413/2x160 | ||||
| 200 | Z413/2x200 | ||||
| 5 | 2,5 | 100 | Z413/2,5x100 | ||
| 160 | Z413/2,5x160 | ||||
| 250 | Z413/2,5x250 | ||||
| 0,3 | 3 | 6 | 3 | 100 | Z413/3x100 |
| 160 | Z413/3x160 | ||||
| 250 | Z413/3x250 | ||||
| 7 | 3,5 | 100 | Z413/3,5x100 | ||
| 160 | Z413/3,5x160 | ||||
| 250 | Z413/3,5x250 | ||||
| 8 | 4 | 100 | Z413/4x100 | ||
| 160 | Z413/4x160 | ||||
| 250 | Z413/4x250 | ||||
| 4,5 | 100 | Z413/4,5x100 | |||
| 160 | Z413/4,5x160 | ||||
| 250 | Z413/4,5x250 | ||||
| 10 | 5 | 100 | Z413/5x100 | ||
| 160 | Z413/5x160 | ||||
| 250 | Z413/5x250 | ||||
| 5,5 | 100 | Z413/5,5x100 | |||
| 160 | Z413/5,5x160 | ||||
| 250 | Z413/5,5x250 | ||||
| 0,5 | 5 | 12 | 6 | 100 | Z413/6x100 |
| 160 | Z413/6x160 | ||||
| 250 | Z413/6x250 | ||||
| 14 | 8 | Z413/8x250 | |||
| 16 | 10 | Z413/10x250 |
