HASCO Ejector Pin Z43/d1xl1(DIN 1530-3)

HASCO Ejector Pin
Z43/d1xl1(DIN 1530-3)
WAS (~ 1.2343)

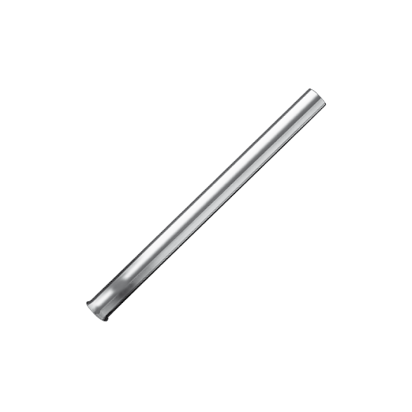

Ejector pin, concial head, hardened, nitrided

The innovative HASCO ejector configurator enables users to readily configure ejector pins online in customized lengths.
This tool considerably simplifies and speeds up the ordering process

Special  Features

• Different diameters and freely definable lengths to choose from in a wide range of tolerance levels
• Ready-to-install, precision tolerances of up to ± 0.01mm
• Transparent, user-friendly process
• Delivery time and customized price are displayed directly
• Easy transfer to the shopping cart
• Short delivery times

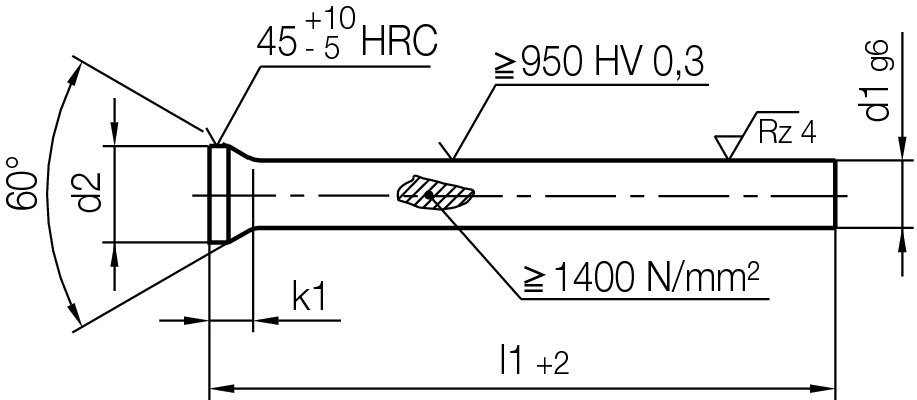

k1	d2	d1	l1	Product
1,8	4,5	3	100	Z43/3x100
			160	Z43/3x160
			200	Z43/3x200
	5,5	4	100	Z43/4x100
			125	Z43/4x125
			160	Z43/4x160
			200	Z43/4x200
	6,5	5	100	Z43/5x100
			125	Z43/5x125
			160	Z43/5x160
			250	Z43/5x250
2,2	8	6	100	Z43/6x100
			125	Z43/6x125
			160	Z43/6x160
2,7	10	8	100	Z43/8x100
			125	Z43/8x125
			160	Z43/8x160
			200	Z43/8x200
	12	10	125	Z43/10x125
			160	Z43/10x160
			200	Z43/10x200
			250	Z43/10x250
			315	Z43/10x315
	14	12	125	Z43/12x125
			160	Z43/12x160
			200	Z43/12x200
			250	Z43/12x250
