HASCO Ejector Pin Z443/d1xl1(DIN 1530-2)

HASCO Ejector Pin
Z443/d1xl1
WS (~1.2516)
DIN 1530-2
coated with DLC

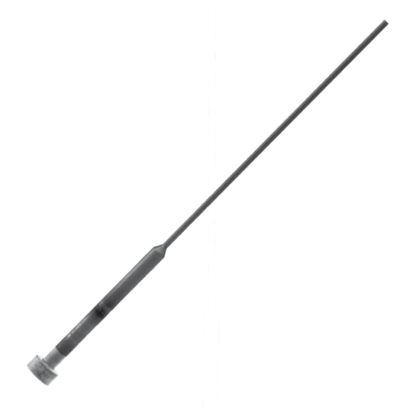

Ejector Pin, DLC, shouldered, hardened

Ejectors are the most stress-loaded components in the mould. Precisely with small diameters, there is a danger of buckling here. This danger is minimized with the shouldered variant Z 443/....

The DLC coating combines good hardness with optimum tribological properties as regards friction, wear, and lubrication. The low friction values of the coated ejector pins significantly improve the service life of the moulds and thus make an important contribution to increasing the productivity of the moulds.

Special Features

• For articles with very little space
• Stepped version enables greater stability
• Fully hardened shaft
• Swaged cylindrical head
• DLC coating enables a production without lubrication
• Ideal for use in the food and medical sectors

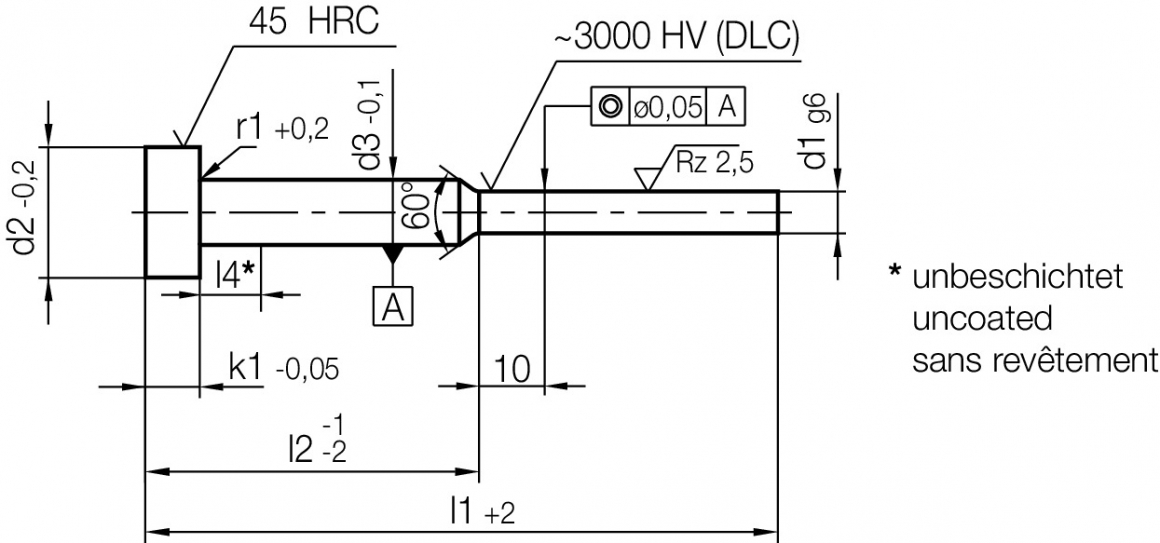

r1	k1	l4	l2	d3	d2	d1	l1	Product
0,2	2	5	35	2	4	0,5	80	Z443/0,5x80
			50				100	Z443/0,5x100
							125	Z443/0,5x125
			75				160	Z443/0,5x160
			35			0,6	80	Z443/0,6x80
			50				100	Z443/0,6x100
							125	Z443/0,6x125
			75				160	Z443/0,6x160
							200	Z443/0,6x200
			25			0,8	63	Z443/0,8x63
			35				80	Z443/0,8x80
			50				100	Z443/0,8x100
							125	Z443/0,8x125
			75				160	Z443/0,8x160
							200	Z443/0,8x200
			100				250	Z443/0,8x250
			25			1	63	Z443/1x63
			35				80	Z443/1x80
			50				100	Z443/1x100
							125	Z443/1x125
			75				160	Z443/1x160
							200	Z443/1x200
			100				250	Z443/1x250
			125				275	Z443/1x275
			25			1,2	63	Z443/1,2x63
			35				80	Z443/1,2x80
			50				100	Z443/1,2x100
							125	Z443/1,2x125
			75				160	Z443/1,2x160
							200	Z443/1,2x200
			100				250	Z443/1,2x250
			125				275	Z443/1,2x275
			25			1,3	63	Z443/1,3x63
			35				80	Z443/1,3x80
			50				100	Z443/1,3x100
							125	Z443/1,3x125
			75				160	Z443/1,3x160
							200	Z443/1,3x200
			25			1,4	63	Z443/1,4x63
			35				80	Z443/1,4x80
			50				100	Z443/1,4x100
							125	Z443/1,4x125
			75				160	Z443/1,4x160
							200	Z443/1,4x200
0,3	3		25	3	6	1,5	63	Z443/1,5x63
			35				80	Z443/1,5x80
			50				100	Z443/1,5x100
							125	Z443/1,5x125
			75				160	Z443/1,5x160
							200	Z443/1,5x200
			100				250	Z443/1,5x250
			125				275	Z443/1,5x275
			160				315	Z443/1,5x315
			35			1,6	80	Z443/1,6x80
			50				100	Z443/1,6x100
							125	Z443/1,6x125
			75				160	Z443/1,6x160
							200	Z443/1,6x200
			35			1,8	80	Z443/1,8x80
			50				100	Z443/1,8x100
							125	Z443/1,8x125
			75				160	Z443/1,8x160
							200	Z443/1,8x200
			35			2	80	Z443/2x80
		50	100				Z443/2x100
			125				Z443/2x125
		75	160				Z443/2x160
			200				Z443/2x200
		100	250				Z443/2x250
		125	275				Z443/2x275
		160	315				Z443/2x315
		50	2,2			100	Z443/2,2x100
						125	Z443/2,2x125
		75				160	Z443/2,2x160
						200	Z443/2,2x200
		50	2,5			100	Z443/2,5x100
						125	Z443/2,5x125
		75				160	Z443/2,5x160
						200	Z443/2,5x200
		100				250	Z443/2,5x250
		125				275	Z443/2,5x275
		160				315	Z443/2,5x315
