HASCO Ejector Sleeve Z457-d1xd2xl1 (DIN ISO 8405) (DIN 16756)

add to cart Inquiry Now

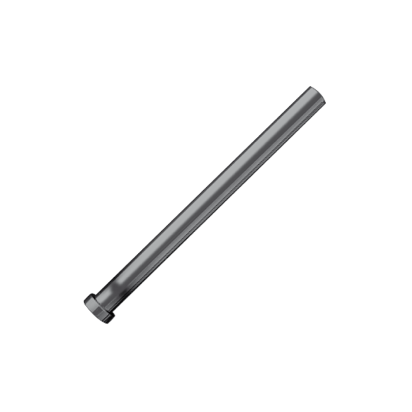

HASCO Ejector Sleeve
Z457/d1xd2xl1
WAS (~ 1.2343)
DIN ISO 8405 (DIN 16756)
DLC coated
Ejector sleeve, with DLC coating, hardened and nitrided

The DLC coating combines good hardness with optimum tribological properties as regards friction, wear, and lubrication.
The high layer hardness and the low friction values of the coated ejector sleeves combined with the DLC coated ejector pins Z 400 /... significantly improve the service life of the moulds and thus make an important contri-bution to increasing the productivity of the moulds.

Special Features

Sleeves with an outer coating that have DLC coated ejectors pins Z 400 /... running inside them
Nitrided bore
Production without lubrication
No accumulation of grease at the end of the ejector
Hard slip layer
Extremely low friction coefficient
High ejector speeds possible
Ideal for use in the food and medical sectors
Suitable for clean-room use
Reduction of wear on the mould insert

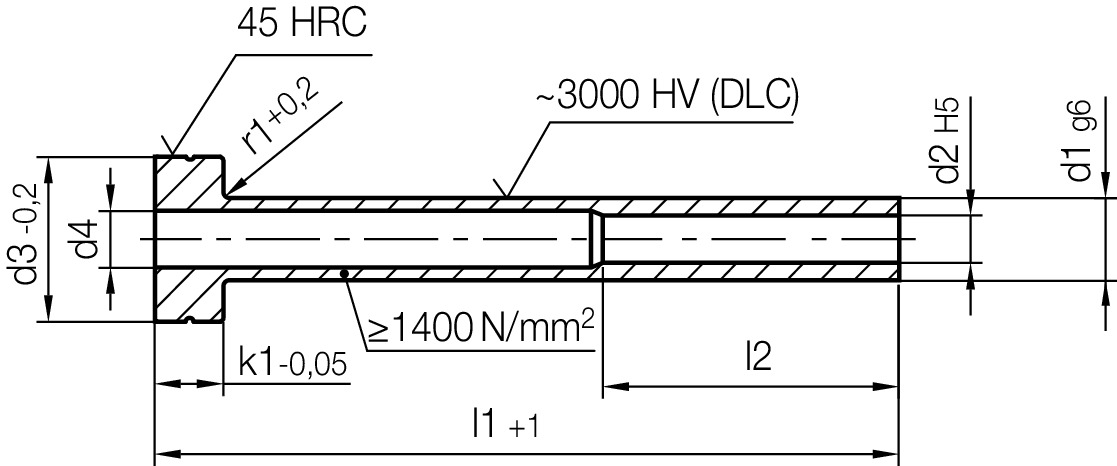

r1	k1	l2	d4	d3	d1	d2	l1	Product
0,5	3	35	2,3	7	3,5	2	71	Z457/3,5x2x71
							80	Z457/3,5x2x80
							90	Z457/3,5x2x90
							100	Z457/3,5x2x100
							112	Z457/3,5x2x112
							125	Z457/3,5x2x125
							140	Z457/3,5x2x140
			2,4	8	4		60	Z457/4x2x60
							75	Z457/4x2x75
							100	Z457/4x2x100
							125	Z457/4x2x125
							150	Z457/4x2x150
			2,8			2,5	50	Z457/4x2,5x50
							56	Z457/4x2,5x56
							63	Z457/4x2,5x63
							71	Z457/4x2,5x71
							80	Z457/4x2,5x80
							100	Z457/4x2,5x100
							112	Z457/4x2,5x112
							125	Z457/4x2,5x125
							150	Z457/4x2,5x150
							175	Z457/4x2,5x175
							200	Z457/4x2,5x200
					4,5		100	Z457/4,5x2,5x100
							112	Z457/4,5x2,5x112
							125	Z457/4,5x2,5x125
							140	Z457/4,5x2,5x140
		50	3			3	50	Z457/4,5x3x50
		45	3,3				56	Z457/4,5x3x56
							63	Z457/4,5x3x63
							80	Z457/4,5x3x80
							100	Z457/4,5x3x100
							112	Z457/4,5x3x112
			3,5	10	5		60	Z457/5x3x60
							75	Z457/5x3x75
							100	Z457/5x3x100
							112	Z457/5x3x112
							125	Z457/5x3x125
							150	Z457/5x3x150
							160	Z457/5x3x160
							175	Z457/5x3x175
							200	Z457/5x3x200
							225	Z457/5x3x225
							250	Z457/5x3x250
			3,8			3,5	56	Z457/5x3,5x56
							71	Z457/5x3,5x71
							80	Z457/5x3,5x80
							100	Z457/5x3,5x100
							112	Z457/5x3,5x112
							125	Z457/5x3,5x125
							150	Z457/5x3,5x150
							175	Z457/5x3,5x175
							200	Z457/5x3,5x200
							225	Z457/5x3,5x225
					5,5		112	Z457/5,5x3,5x112
							125	Z457/5,5x3,5x125
							140	Z457/5,5x3,5x140
							160	Z457/5,5x3,5x160
							180	Z457/5,5x3,5x180
							200	Z457/5,5x3,5x200
	5		4	12	6		60	Z457/6x3,5x60
							75	Z457/6x3,5x75
							100	Z457/6x3,5x100
							125	Z457/6x3,5x125
150							Z457/6x3,5x150
175							Z457/6x3,5x175
200							Z457/6x3,5x200
225							Z457/6x3,5x225
250							Z457/6x3,5x250
275							Z457/6x3,5x275
300							Z457/6x3,5x300
325							Z457/6x3,5x325
4,5			4			60	Z457/6x4x60
						75	Z457/6x4x75
						100	Z457/6x4x100
						112	Z457/6x4x112
						125	Z457/6x4x125
						140	Z457/6x4x140
						150	Z457/6x4x150
						160	Z457/6x4x160
						175	Z457/6x4x175
						200	Z457/6x4x200
						225	Z457/6x4x225
						250	Z457/6x4x250
						275	Z457/6x4x275
						300	Z457/6x4x300
						325	Z457/6x4x325
4,8			4,5			100	Z457/6x4,5x100
						125	Z457/6x4,5x125
						150	Z457/6x4,5x150
						175	Z457/6x4,5x175
						200	Z457/6x4,5x200
		225				Z457/6x4,5x225
		250				Z457/6x4,5x250
5		7			112	Z457/7x4,5x112
					125	Z457/7x4,5x125
					140	Z457/7x4,5x140
					160	Z457/7x4,5x160
					180	Z457/7x4,5x180
					200	Z457/7x4,5x200
					225	Z457/7x4,5x225
					250	Z457/7x4,5x250
					280	Z457/7x4,5x280
5,3			5		56	Z457/7x5x56
					63	Z457/7x5x63
					71	Z457/7x5x71
					80	Z457/7x5x80
					90	Z457/7x5x90
					100	Z457/7x5x100
					112	Z457/7x5x112
					125	Z457/7x5x125
5,5		14		8	60	Z457/8x5x60
					75	Z457/8x5x75
					100	Z457/8x5x100
					125	Z457/8x5x125
					150	Z457/8x5x150
					175	Z457/8x5x175
					200	Z457/8x5x200
					225	Z457/8x5x225
					250	Z457/8x5x250
					275	Z457/8x5x275
					300	Z457/8x5x300
					325	Z457/8x5x325
					100	400	Z457/8x5x400
45	5,8		5,5		112	Z457/8x5,5x112
					125	Z457/8x5,5x125
					140	Z457/8x5,5x140
					160	Z457/8x5,5x160
					180	Z457/8x5,5x180
					200	Z457/8x5,5x200
					225	Z457/8x5,5x225
					250	Z457/8x5,5x250
					280	Z457/8x5,5x280
	6,5		9	6	125	Z457/9x6x125
					140	Z457/9x6x140
					160	Z457/9x6x160
					180	Z457/9x6x180
					200	Z457/9x6x200
					225	Z457/9x6x225
					250	Z457/9x6x250
					280	Z457/9x6x280
		16	10		60	Z457/10x6x60
					75	Z457/10x6x75
					100	Z457/10x6x100
					125	Z457/10x6x125
					150	Z457/10x6x150
					175	Z457/10x6x175
					200	Z457/10x6x200
					225	Z457/10x6x225
					250	Z457/10x6x250
					275	Z457/10x6x275
	7,5			7	125	Z457/10x7x125
					140	Z457/10x7x140
					160	Z457/10x7x160
					180	Z457/10x7x180
					200	Z457/10x7x200
					225	Z457/10x7x225
					250	Z457/10x7x250
					280	Z457/10x7x280
	7	8,5	20	12	8	60	Z457/12x8x60
						75	Z457/12x8x75
						100	Z457/12x8x100
						125	Z457/12x8x125
						150	Z457/12x8x150
						175	Z457/12x8x175
						200	Z457/12x8x200
						225	Z457/12x8x225
						250	Z457/12x8x250
						275	Z457/12x8x275
						300	Z457/12x8x300
						325	Z457/12x8x325
100						400	Z457/12x8x400
