HASCO Flat Ejector Z4655-b1xs1xl1 (DIN ISO 8693)

add to cart Inquiry Now

HASCO Flat Ejector
Z4655/b1xs1xl1
WS (~1.2516)
DIN ISO 8693

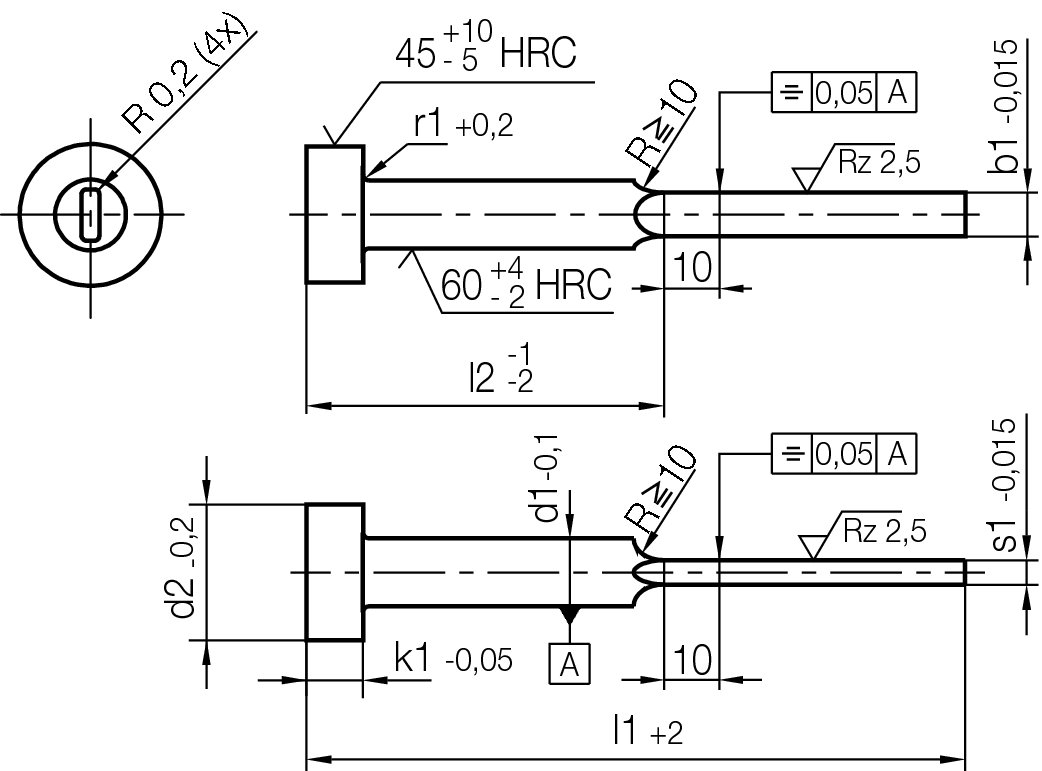

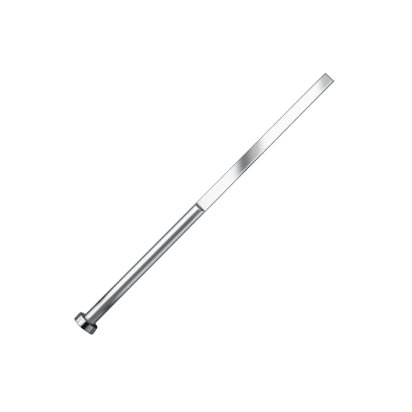

Flat ejector pin, with four corner radii

The hardened HASCO flat ejector pins Z4656/... with two or Z4655/... with four corner radii offer a wide range of practicable solutions for demoulding plastic articles from injection moulds.
The flat ejector pins are used in rib or bar areas that are critical in design terms.
The tolerance of the HASCO flat ejector pin is a key quality criterion here.

Special Features

Tight dimensional and shape tolerance
Ready to install with no adjustments needed
Improved mould function
No flash formation
Z4656/... specially for use with divided inserts
All sizes available from stock

r1	k1	l2	d4	d2	d1	b1	s1	l1	Product
0,3	3	40	3	6	3	2,8	0,5	80	Z4655/2,8x0,5x80
		50						100	Z4655/2,8x0,5x100
		60						125	Z4655/2,8x0,5x125
		80						160	Z4655/2,8x0,5x160
		40					0,6	80	Z4655/2,8x0,6x80
		50						100	Z4655/2,8x0,6x100
		60						125	Z4655/2,8x0,6x125
		80						160	Z4655/2,8x0,6x160
		40					0,8	80	Z4655/2,8x0,8x80
		50						100	Z4655/2,8x0,8x100
		60						125	Z4655/2,8x0,8x125
		80						160	Z4655/2,8x0,8x160
		100						200	Z4655/2,8x0,8x200
		50					1	100	Z4655/2,8x1x100
		60						125	Z4655/2,8x1x125
		80						160	Z4655/2,8x1x160
		100						200	Z4655/2,8x1x200
		40	4,2	8	4,2	3,8	0,5	80	Z4655/3,8x0,5x80
		50						100	Z4655/3,8x0,5x100
		60						125	Z4655/3,8x0,5x125
		80						160	Z4655/3,8x0,5x160
		40					0,6	80	Z4655/3,8x0,6x80
		50						100	Z4655/3,8x0,6x100
		60						125	Z4655/3,8x0,6x125
		80						160	Z4655/3,8x0,6x160
		100						200	Z4655/3,8x0,6x200
		30					0,8	63	Z4655/3,8x0,8x63
		40						80	Z4655/3,8x0,8x80
		50						100	Z4655/3,8x0,8x100
		60						125	Z4655/3,8x0,8x125
		80						160	Z4655/3,8x0,8x160
		100						200	Z4655/3,8x0,8x200
		125						250	Z4655/3,8x0,8x250
		30					1	63	Z4655/3,8x1x63
		40						80	Z4655/3,8x1x80
		50						100	Z4655/3,8x1x100
		60						125	Z4655/3,8x1x125
		80						160	Z4655/3,8x1x160
		100						200	Z4655/3,8x1x200
		125						250	Z4655/3,8x1x250
		160						315	Z4655/3,8x1x315
		40					1,2	80	Z4655/3,8x1,2x80
		50						100	Z4655/3,8x1,2x100
		60						125	Z4655/3,8x1,2x125
		80						160	Z4655/3,8x1,2x160
		100						200	Z4655/3,8x1,2x200
		125						250	Z4655/3,8x1,2x250
		160						315	Z4655/3,8x1,2x315
		40	5	10	5	4,5	1	80	Z4655/4,5x1x80
		50						100	Z4655/4,5x1x100
		60						125	Z4655/4,5x1x125
		80						160	Z4655/4,5x1x160
		100						200	Z4655/4,5x1x200
		125						250	Z4655/4,5x1x250
		160						315	Z4655/4,5x1x315
		40					1,2	80	Z4655/4,5x1,2x80
		50						100	Z4655/4,5x1,2x100
		60						125	Z4655/4,5x1,2x125
		80						160	Z4655/4,5x1,2x160
		100						200	Z4655/4,5x1,2x200
		125						250	Z4655/4,5x1,2x250
		160						315	Z4655/4,5x1,2x315
		40					1,5	80	Z4655/4,5x1,5x80
		50						100	Z4655/4,5x1,5x100
60	125	Z4655/4,5x1,5x125
80	160	Z4655/4,5x1,5x160
100	200	Z4655/4,5x1,5x200
125	250	Z4655/4,5x1,5x250
160	315	Z4655/4,5x1,5x315
0,5	5	40	6	12	6	5,5	1	80	Z4655/5,5x1x80
		50						100	Z4655/5,5x1x100
		60						125	Z4655/5,5x1x125
		80						160	Z4655/5,5x1x160
		100						200	Z4655/5,5x1x200
		125						250	Z4655/5,5x1x250
		160						315	Z4655/5,5x1x315
		40					1,2	80	Z4655/5,5x1,2x80
		50						100	Z4655/5,5x1,2x100
		60						125	Z4655/5,5x1,2x125
		80						160	Z4655/5,5x1,2x160
		100						200	Z4655/5,5x1,2x200
		125						250	Z4655/5,5x1,2x250
		160						315	Z4655/5,5x1,2x315
		50					1,5	100	Z4655/5,5x1,5x100
		60						125	Z4655/5,5x1,5x125
		80						160	Z4655/5,5x1,5x160
		100						200	Z4655/5,5x1,5x200
		125						250	Z4655/5,5x1,5x250
		160						315	Z4655/5,5x1,5x315
		50					2	100	Z4655/5,5x2x100
		60						125	Z4655/5,5x2x125
		80						160	Z4655/5,5x2x160
		100						200	Z4655/5,5x2x200
		125						250	Z4655/5,5x2x250
		160						315	Z4655/5,5x2x315
		50	8	14	8	7,5	1,2	100	Z4655/7,5x1,2x100
		60						125	Z4655/7,5x1,2x125
		80						160	Z4655/7,5x1,2x160
		100						200	Z4655/7,5x1,2x200
		125						250	Z4655/7,5x1,2x250
		160						315	Z4655/7,5x1,2x315
		60					1,5	125	Z4655/7,5x1,5x125
		80						160	Z4655/7,5x1,5x160
		100						200	Z4655/7,5x1,5x200
		125						250	Z4655/7,5x1,5x250
		160						315	Z4655/7,5x1,5x315
		80					2	160	Z4655/7,5x2x160
		100						200	Z4655/7,5x2x200
		125						250	Z4655/7,5x2x250
		160						315	Z4655/7,5x2x315
		80	10	16	10	9,5	1,5	160	Z4655/9,5x1,5x160
		100						200	Z4655/9,5x1,5x200
		125						250	Z4655/9,5x1,5x250
		160						315	Z4655/9,5x1,5x315
		100					2	200	Z4655/9,5x2x200
		125						250	Z4655/9,5x2x250
		160						315	Z4655/9,5x2x315
0,8	7	100	12	18	12	11,5		200	Z4655/11,5x2x200
		125						250	Z4655/11,5x2x250
		160						315	Z4655/11,5x2x315
		100					2,5	200	Z4655/11,5x2,5x200
		125						250	Z4655/11,5x2,5x250
		160						315	Z4655/11,5x2,5x315
