HASCO Guide Pillars Z01-d1xl1 (DIN ISO 8404-A)

add to cart Inquiry Now

HASCO Guide Pillars
Z01/d1xl1
720 HV 30
~ 1.0401
DIN ISO 8404-A

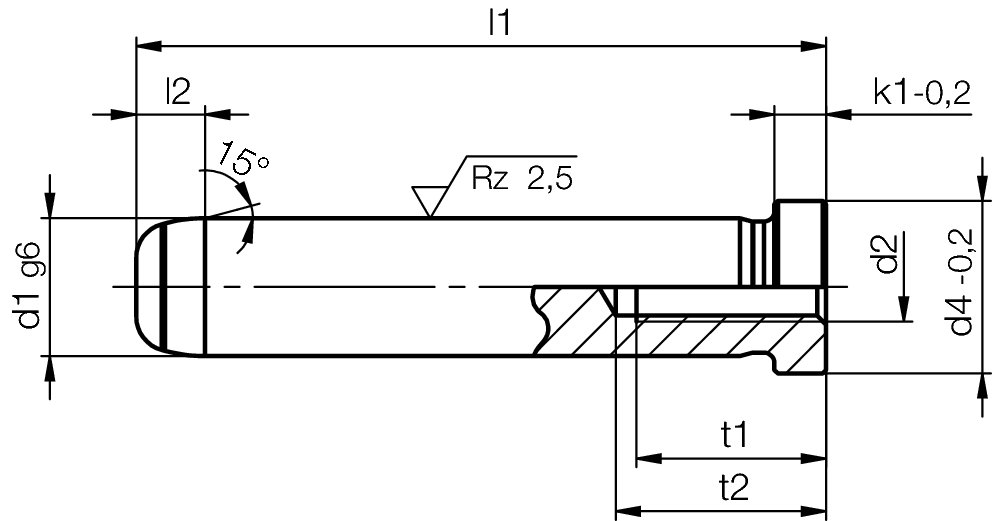

Guide pillar, Angle Pin

k1	t2	t1	l2	d4	d2	d1	l1	Product
3	12	8	4	10	M4	8	40	Z01/8x40
							50	Z01/8x50
							60	Z01/8x60
							70	Z01/8x70
							80	Z01/8x80
							90	Z01/8x90
							100	Z01/8x100
							120	Z01/8x120
	15	10		12	M5	9	40	Z01/9x40
							60	Z01/9x60
							70	Z01/9x70
							80	Z01/9x80
							90	Z01/9x90
							100	Z01/9x100
							120	Z01/9x120
					M6	10	40	Z01/10x40
							50	Z01/10x50
							60	Z01/10x60
							70	Z01/10x70
							80	Z01/10x80
							90	Z01/10x90
							100	Z01/10x100
							120	Z01/10x120
							140	Z01/10x140
6	17	12	7	16		12	40	Z01/12x40
							60	Z01/12x60
							70	Z01/12x70
							80	Z01/12x80
							90	Z01/12x90
							100	Z01/12x100
							110	Z01/12x110
							120	Z01/12x120
							140	Z01/12x140
							160	Z01/12x160
							180	Z01/12x180
8				18		14	60	Z01/14x60
							70	Z01/14x70
							80	Z01/14x80
							90	Z01/14x90
							100	Z01/14x100
							110	Z01/14x110
							120	Z01/14x120
							140	Z01/14x140
							160	Z01/14x160
							180	Z01/14x180
							200	Z01/14x200
	22	16			M8	15	60	Z01/15x60
							80	Z01/15x80
							100	Z01/15x100
							120	Z01/15x120
							140	Z01/15x140
							160	Z01/15x160
							180	Z01/15x180
				20		16	40	Z01/16x40
							60	Z01/16x60
							70	Z01/16x70
							80	Z01/16x80
							90	Z01/16x90
							100	Z01/16x100
							110	Z01/16x110
							120	Z01/16x120
							140	Z01/16x140
							160	Z01/16x160
							180	Z01/16x180
							200	Z01/16x200
							220	Z01/16x220
							240	Z01/16x240
	27	20		22	M10	18	60	Z01/18x60
							70	Z01/18x70
							80	Z01/18x80
							90	Z01/18x90
							100	Z01/18x100
							110	Z01/18x110
							120	Z01/18x120
							140	Z01/18x140
							160	Z01/18x160
							180	Z01/18x180
							200	Z01/18x200
							220	Z01/18x220
							240	Z01/18x240
							260	Z01/18x260
							280	Z01/18x280
				24		20	60	Z01/20x60
							80	Z01/20x80
							90	Z01/20x90
							100	Z01/20x100
							110	Z01/20x110
							120	Z01/20x120
			140				Z01/20x140
			160				Z01/20x160
			180				Z01/20x180
			200				Z01/20x200
			220				Z01/20x220
			240				Z01/20x240
			260				Z01/20x260
			280				Z01/20x280
			300				Z01/20x300
			320				Z01/20x320
15			26	22		80	Z01/22x80
						100	Z01/22x100
						120	Z01/22x120
						140	Z01/22x140
						160	Z01/22x160
						180	Z01/22x180
						200	Z01/22x200
						220	Z01/22x220
						240	Z01/22x240
						260	Z01/22x260
						280	Z01/22x280
						300	Z01/22x300
						320	Z01/22x320
	32	24	28	M12	24	80	Z01/24x80
						100	Z01/24x100
						120	Z01/24x120
						140	Z01/24x140
						160	Z01/24x160
						180	Z01/24x180
						200	Z01/24x200
						220	Z01/24x220
						240	Z01/24x240
						260	Z01/24x260
						280	Z01/24x280
						300	Z01/24x300
						320	Z01/24x320
	41	32	36	M16	30	100	Z01/30x100
						120	Z01/30x120
						160	Z01/30x160
						180	Z01/30x180
						200	Z01/30x200
						220	Z01/30x220
						240	Z01/30x240
						260	Z01/30x260
						280	Z01/30x280
						300	Z01/30x300
						320	Z01/30x320
						360	Z01/30x360
						400	Z01/30x400
					32	100	Z01/32x100
						120	Z01/32x120
						160	Z01/32x160
						200	Z01/32x200
						240	Z01/32x240
						300	Z01/32x300
						360	Z01/32x360
			10		48	40	160	Z01/40x160
							200	Z01/40x200
							240	Z01/40x240
							300	Z01/40x300
							360	Z01/40x360
							400	Z01/40x400
					58	50	160	Z01/50x160
							200	Z01/50x200
							240	Z01/50x240
							300	Z01/50x300
							360	Z01/50x360
