HASCO Guide Pillars
Z025/d1xl1
~ 62 HRC
1.8159
ISO 9182-2 / DIN 9825-2

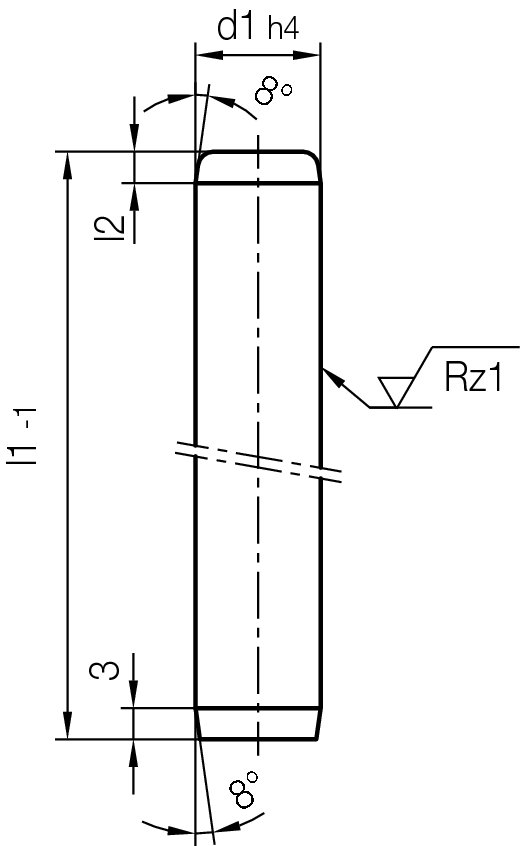

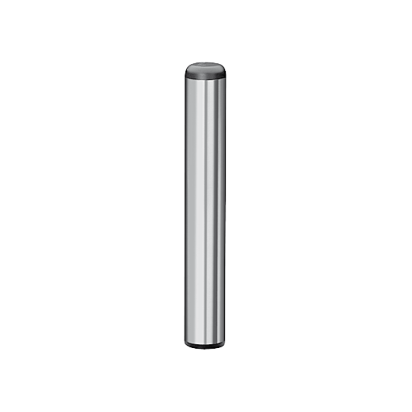

Guide pillar, Headless
Z025/d1xl1
~ 62 HRC
1.8159
ISO 9182-2 / DIN 9825-2
Guide pillar, Headless
| l2 | d1 | l1 | Product |
| 3 | 11 | 80 | Z025/11x80 |
| 90 | Z025/11x90 | ||
| 100 | Z025/11x100 | ||
| 112 | Z025/11x112 | ||
| 125 | Z025/11x125 | ||
| 140 | Z025/11x140 | ||
| 12 | 80 | Z025/12x80 | |
| 90 | Z025/12x90 | ||
| 100 | Z025/12x100 | ||
| 112 | Z025/12x112 | ||
| 125 | Z025/12x125 | ||
| 140 | Z025/12x140 | ||
| 4 | 15 | 90 | Z025/15x90 |
| 100 | Z025/15x100 | ||
| 112 | Z025/15x112 | ||
| 125 | Z025/15x125 | ||
| 140 | Z025/15x140 | ||
| 160 | Z025/15x160 | ||
| 180 | Z025/15x180 | ||
| 200 | Z025/15x200 | ||
| 16 | 90 | Z025/16x90 | |
| 100 | Z025/16x100 | ||
| 112 | Z025/16x112 | ||
| 125 | Z025/16x125 | ||
| 140 | Z025/16x140 | ||
| 160 | Z025/16x160 | ||
| 180 | Z025/16x180 | ||
| 200 | Z025/16x200 | ||
| 19 | 100 | Z025/19x100 | |
| 112 | Z025/19x112 | ||
| 125 | Z025/19x125 | ||
| 140 | Z025/19x140 | ||
| 160 | Z025/19x160 | ||
| 180 | Z025/19x180 | ||
| 200 | Z025/19x200 | ||
| 224 | Z025/19x224 | ||
| 20 | 100 | Z025/20x100 | |
| 112 | Z025/20x112 | ||
| 125 | Z025/20x125 | ||
| 140 | Z025/20x140 | ||
| 160 | Z025/20x160 | ||
| 180 | Z025/20x180 | ||
| 200 | Z025/20x200 | ||
| 224 | Z025/20x224 | ||
| 6 | 24 | 100 | Z025/24x100 |
| 112 | Z025/24x112 | ||
| 125 | Z025/24x125 | ||
| 140 | Z025/24x140 | ||
| 160 | Z025/24x160 | ||
| 180 | Z025/24x180 | ||
| 200 | Z025/24x200 | ||
| 224 | Z025/24x224 | ||
| 250 | Z025/24x250 | ||
| 280 | Z025/24x280 | ||
| 25 | 100 | Z025/25x100 | |
| 112 | Z025/25x112 | ||
| 125 | Z025/25x125 | ||
| 140 | Z025/25x140 | ||
| 160 | Z025/25x160 | ||
| 180 | Z025/25x180 | ||
| 200 | Z025/25x200 | ||
| 224 | Z025/25x224 | ||
| 250 | Z025/25x250 | ||
| 280 | Z025/25x280 | ||
| 30 | 125 | Z025/30x125 | |
| 140 | Z025/30x140 | ||
| 160 | Z025/30x160 | ||
| 180 | Z025/30x180 | ||
| 200 | Z025/30x200 | ||
| 224 | Z025/30x224 | ||
| 250 | Z025/30x250 | ||
| 280 | Z025/30x280 | ||
| 315 | Z025/30x315 | ||
| 32 | 125 | Z025/32x125 | |
| 140 | Z025/32x140 | ||
| 160 | Z025/32x160 | ||
| 180 | Z025/32x180 | ||
| 200 | Z025/32x200 | ||
| 224 | Z025/32x224 | ||
| 250 | Z025/32x250 | ||
| 280 | Z025/32x280 | ||
| 315 | Z025/32x315 | ||
| 38 | 160 | Z025/38x160 | |
| 180 | Z025/38x180 | ||
| 200 | Z025/38x200 | ||
| 224 | Z025/38x224 | ||
| 250 | Z025/38x250 | ||
| 280 | Z025/38x280 | ||
| 315 | Z025/38x315 | ||
| 355 | Z025/38x355 | ||
| 400 | Z025/38x400 | ||
| 40 | 160 | Z025/40x160 | |
| 180 | Z025/40x180 | ||
| 200 | Z025/40x200 | ||
| 224 | Z025/40x224 | ||
| 250 | Z025/40x250 | ||
| 280 | Z025/40x280 | ||
| 315 | Z025/40x315 | ||
| 355 | Z025/40x355 | ||
| 400 | Z025/40x400 | ||
| 8 | 48 | 180 | Z025/48x180 |
| 200 | Z025/48x200 | ||
| 224 | Z025/48x224 | ||
| 250 | Z025/48x250 | ||
| 280 | Z025/48x280 | ||
| 315 | Z025/48x315 | ||
| 355 | Z025/48x355 | ||
| 400 | Z025/48x400 | ||
| 450 | Z025/48x450 | ||
| 500 | Z025/48x500 | ||
| 50 | 180 | Z025/50x180 | |
| 200 | Z025/50x200 | ||
| 224 | Z025/50x224 | ||
| 250 | Z025/50x250 | ||
| 280 | Z025/50x280 | ||
| 315 | Z025/50x315 | ||
| 355 | Z025/50x355 | ||
| 400 | Z025/50x400 | ||
| 450 | Z025/50x450 | ||
| 500 | Z025/50x500 | ||
| 60 | 250 | Z025/60x250 | |
| 280 | Z025/60x280 | ||
| 315 | Z025/60x315 | ||
| 355 | Z025/60x355 | ||
| 400 | Z025/60x400 | ||
| 450 | Z025/60x450 | ||
| 500 | Z025/60x500 | ||
| 63 | 250 | Z025/63x250 | |
| 280 | Z025/63x280 | ||
| 315 | Z025/63x315 | ||
| 355 | Z025/63x355 | ||
| 400 | Z025/63x400 | ||
| 450 | Z025/63x450 | ||
| 500 | Z025/63x500 |
