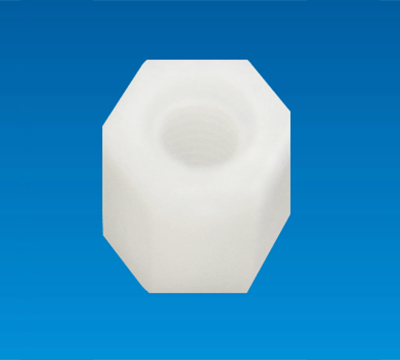

HEXAGONAL SPACER SUPPORT HWH-04

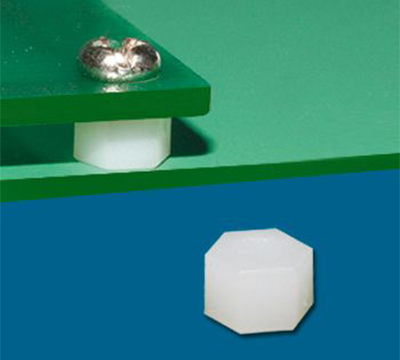

- Joint PCB with Chassis and other board</li>
- Provides distance,space and support between Circuit boards
- Use with Tapping screw to increase the power of holding PCB
HEXAGONAL SPACER SUPPORT HWH-04
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board</li>
- Provides distance,space and support between Circuit boards
- Use with Tapping screw to increase the power of holding PCB
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- SCREW: M3 TAPPING SCREW

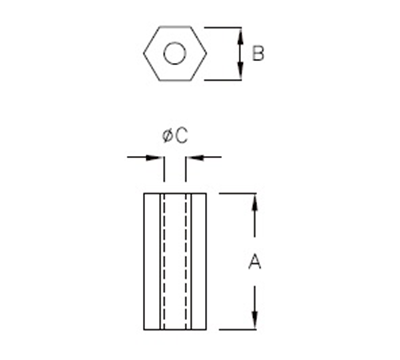

| PART NO | A | B | C | PACKAGE |
|---|---|---|---|---|
| HWH-04 | 4.0 | 5.5 | 2.5 | 1000 |
| HWH-10 | 10.0 | 4.5 | 2.45 | 1000 |
