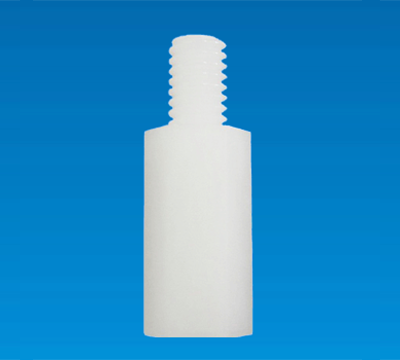

HEXAGONAL SPACER SUPPORT WITH BOLT TH2-4

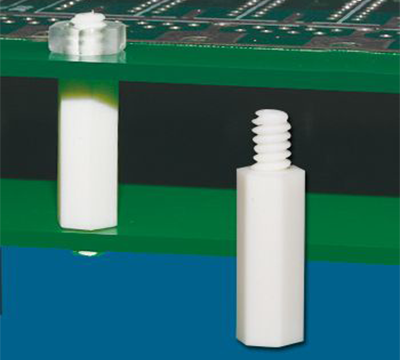

- Joint PCB with Chassis and other board.
- <li>Provides distance, space and support between Circuit boards.
- Use with Tapping screw to increase the power of holding PCB.
- Screw design, associate with nut to fasten the joint board.
HEXAGONAL SPACER SUPPORT WITH BOLT TH2-4
FEATURES
SPECIFICATION
FEATURES
- Joint PCB with Chassis and other board.
- Provides distance, space and support between Circuit boards.
- Use with Tapping screw to increase the power of holding PCB.
- Screw design, associate with nut to fasten the joint board.
SPECIFICATION
- MATERIAL: NYLON66 (UL)
- FLAME CLASS: 94V-2
- COLOR: NATURAL
- SCREW: TAPPING SCREW

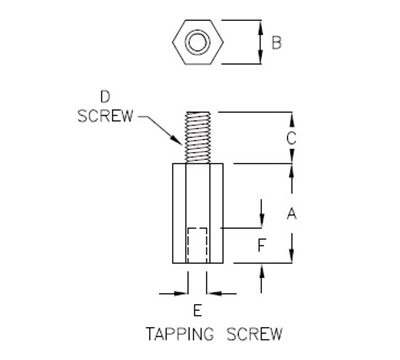

| PART NO | A | B | C | D | E | F | PACKAGE |
|---|---|---|---|---|---|---|---|
| TH2-4 | 4.0 | 5.0 | 2.8 | M2 | Ø1.6 | 2.8 | 2000 |
| TH-15A | 15.0 | 5.0 | 5.0 | #6-32 | Ø2.8 | 10.0 | 1000 |
