High-precision Peltier type temperature control system Musashi PELTIER MASTER TB
- TB-[]C-P-F
- TB-[]C-P-L
- TB-[]C-P-R
Controls the temperature of fluid materials accurately by heating and cooling to implement stable dispensing
High-viscosity fluid materials of which viscosity changes under the influence of environmental temperatures are stably dispensed at high precision level. CE-marking certified, EU RoHS2 compliant.

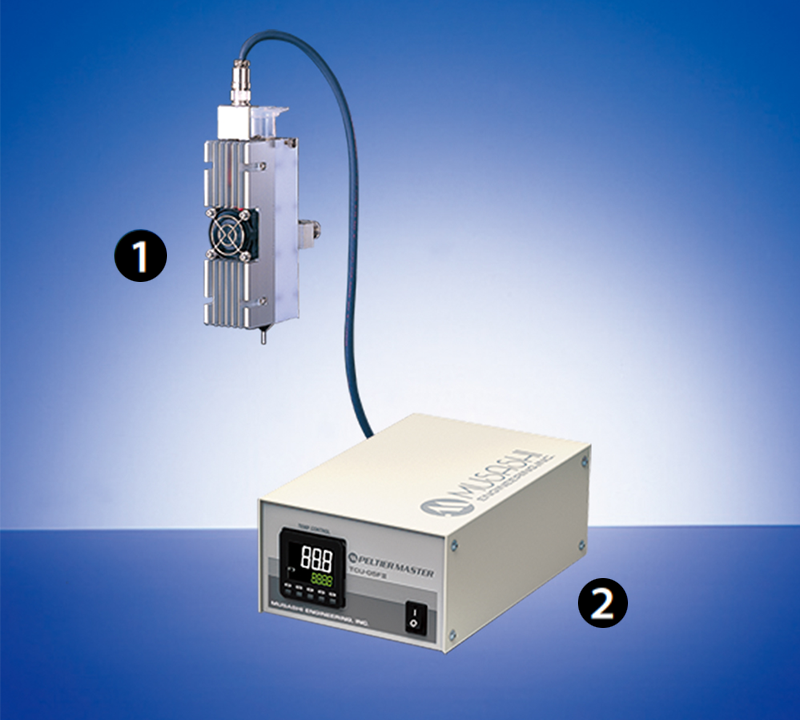

Fan type
Air type
Note: 1. Select one of two types of outlet directions of the AIR IN joint, right or left. 2. A cap for Peltier temperature control block shall be ordered separately in accordance with the nozzle size.
| Item name | Model | Weight | |
| 1. Fan type Peltier temperature control block | [Fan type Peltier 5 mL syringe use] | TB-5C-P-F | 220 g |
| [Fan type Peltier 10 mL syringe use] | TB-10C-P-F | 270 g | |
| [Fan type Peltier 20 mL syringe use] | TB-20C-P-F | 390 g | |
| [Fan type Peltier 30 mL syringe use] | TB-30C-P-F | 490 g | |
| [Fan type Peltier 50 mL syringe use] | TB-50C-P-F | 600 g | |
| 2. Fan type Peltier temperature controller | TCU-05FⅢ | 1.7 kg | |

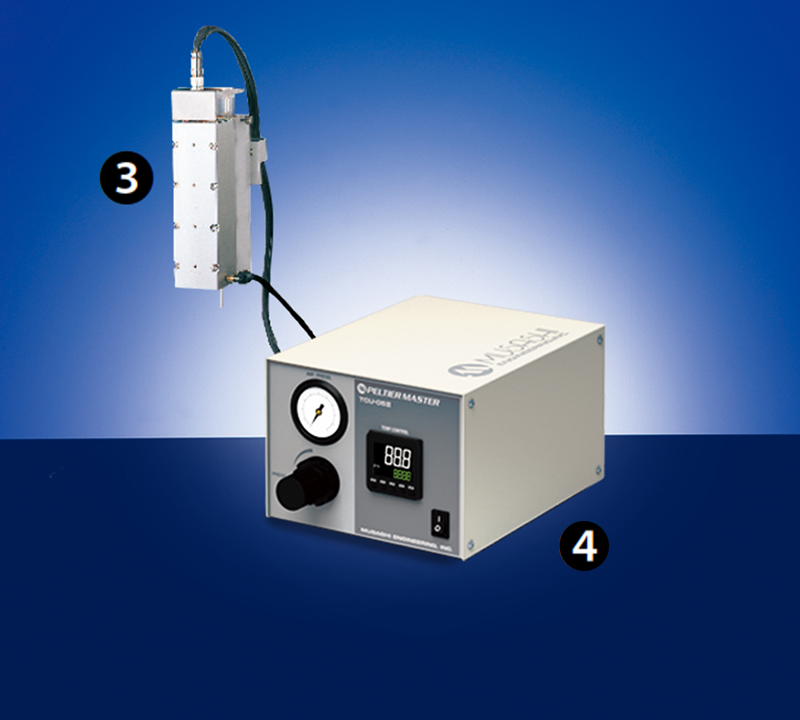

Air type
| Item name | Model | Weight | |
| 3. Air type Peltier temperature control block | [Air type Peltier Left 5 mL syringe use] | TB-5C-P-L | 300 g |
| [Air type Peltier Right 5 mL syringe use] | TB-5C-P-R | ||
| [Air type peltier left specifications 10 mL syringe use] | TB-10C-P-L | 360 g | |
| [Air type peltier right specifications 10 mL syringe use] | TB-10C-P-R | ||
| [Air type peltier left specifications 20 mL syringe use] | TB-20C-P-L | 520 g | |
| [Air type peltier right specifications 20 mL syringe use] | TB-20C-P-R | ||
| [Air type peltier left specifications 30 mL syringe use] | TB-30C-P-L | 640 g | |
| [Air type peltier right specifications 30 mL syringe use] | TB-30C-P-R | ||
| [Air type peltier left specifications 50 mL syringe use] | TB-50C-P-L | 760 g | |
| [Air type peltier right specifications 50 mL syringe use] | TB-50C-P-R | ||
| 4. Air type Peltier temperature controller | TCU-05Ⅲ | 2.6 kg | |
