Adhesive Sealant & Lubricant

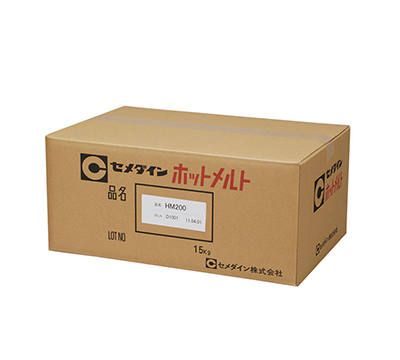

Hot Melt Adhesive HM Series Cemedine
Features
- Hot melt adhesive is a 100-percent solid solventless adhesive.
- Hot melt adhesive allows quick adhesion.
- Hot melt adhesive allows adhesion of an extensive range of materials including plastics.
- Hot melt adhesive simplifies automating adhesion.
Application
- Making, sealing, and adhesion of corrugated board and carton cases
- Assembly of packages
- Assembly and adhesion of electrical and automotive parts
- Pressure-sensitive adhesion of film, etc.
Product data
Property (For corrugated board and paper working)
| For corrugated board and paper working | |||||||
|---|---|---|---|---|---|---|---|
| HM200 | HM207 | HM208S | HM223 | HM232 | HM2611 | ||
| Application / Properties / Features | Quick hardening type | Quick hardening type | Quick hardening type | Product type with a longer open time | Quick hardening type /Product type without stringing |
Quick hardening type Carton case, and Wraparound |
|
| Type | Hot melt adhesive for corrugated board and paper working | ||||||
| Base | EVA | EVA | EVA | EVA | EVA | EVA | |
| External appearance | Light yellow/pellet | Milky white/bead | Milky white/bead | Light yellow/ pellet |
Light yellow/bead | Light yellow/ pellet |
|
| Nonvolatiles | wt% | 100 | 100 | 100 | 100 | 100 | 100 |
| Softening point | °C | 108 | 102 | 102 | 95 | 112 | 112 |
| Viscosity | mPa･s/180°C | 910 | 900 | 900 | 1,000 | 800 | 1,000 |
| Open time | 23°C | 2～4s | 3～5s | 3～5s | 12～14s | 14s | 9s |
| Hardening time | 23°C | 1～2s | 2～3s | 2～3s | 6～7s | 1～2s | s |
| Heat resistance | °C | 60 | 60 | 60 | 45 | 65 | 55 |
| Low temperature resistance | °C | -10 | -10 | -10 | -15 | -25 | -20 |
| Capacity | 15kg | 15kg | 20kg | 15kg | 20kg | 20kg | |
Property (For parts assembly)
| For parts assembly | |||
|---|---|---|---|
| HM409-2 | HM712 | ||
| Application / Properties / Features | Low-viscosity, pressure-sensitive adhesion type |
Product type available for sticker adhesive and low-viscosity spray | |
| Type | Hot melt adhesive for parts assembly | ||
| Base | Synthetic rubber | Olefin resin | |
| External appearance | Dark brown | Milky white/block | |
| Nonvolatiles | wt% | 100 | |
| Softening point | °C | 115 | 120 |
| Viscosity | mPa･s/180°C | 1,400 | 870 |
| Curing property | Open time | 10~20s | |
| Tensile shear strength | N/mm2 | 0.9 | 2.0 |
| Heat resistance | °C | 72 | |
| Capacity | 12kg | 10kg | |
Property (Pressure-sensitive adhesive type)
| Pressure-sensitive adhesive type | ||||
|---|---|---|---|---|
| HM622-10 | HM650-2 | |||
| Application / Properties / Features | High-pressure-sensitive adhesive for packing tape |
Removable type pressure-sensitive adhesive for universal bags | ||
| Type | Hot melt pressure-sensitive adhesive type | |||
| Base | Synthetic rubber | Synthetic rubber | ||
| External appearance | Light yellow/block | Light yellow/block | ||
| Nonvolatiles | wt% | 100 | 100 | |
| Softening point | °C | 118 | 101 | |
| Viscosity | mPa･s/160°C | 50,000 | 37,000 | |
| Stickiness property | Tackiness | N/10mm | 4.9 | 5.9 |
| Pressure-sensitive adhesion property | Ball No. | 15 | 2 | |
| Retention | min/1kg･40°C | 120< | 60< | |
| Capacity | 20kg | 12kg | ||
