Component Forming & Counting

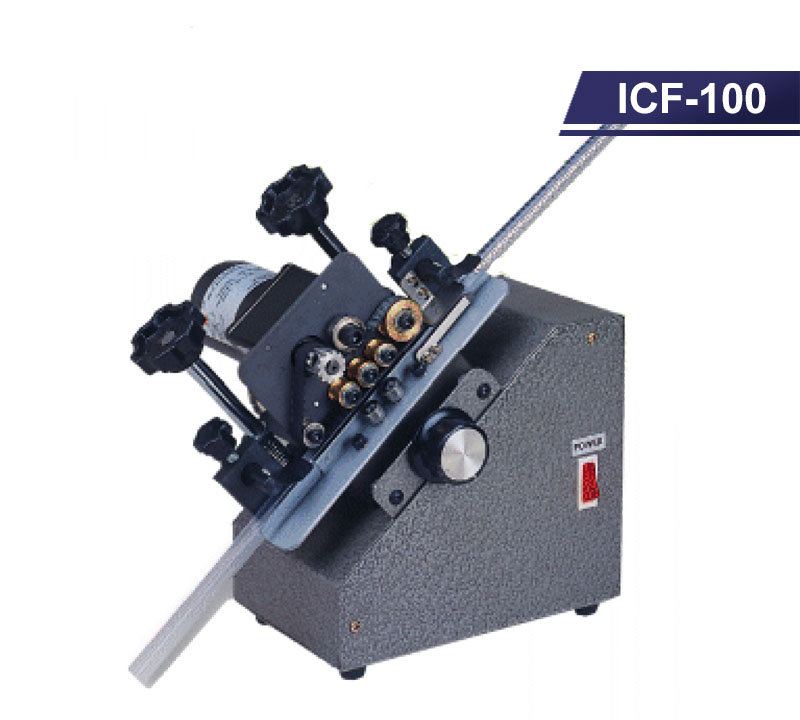

IC Lead Aligning Machine Roller Press
3 Seconds for one stick .
The most efficient way to stretch and align the IC leads.
Power : 110V/60Hz ; 220V/50Hz
Dimension : 330(L)x 250(W)x330(H) mm
Net Weight : 5kgs
The most efficient way to stretch and align the IC leads.
Power : 110V/60Hz ; 220V/50Hz
Dimension : 330(L)x 250(W)x330(H) mm
Net Weight : 5kgs
- Straight and align leads fast by rolling press operation.
- Simply adjusting the knob for different working width without changing any trails.
- The best selection for the mass production.
- While the IC leads are only 4 leads, recommend using ICF-106.
| A | Body Width | 6-18mm |
| H | Lead Lenth | 4-9.5mm |
| D | Thickness | 3-12mm |
| L | Woking | 0.3'-0.75'可調 |
| Capacity | 3 sec./tube | |
