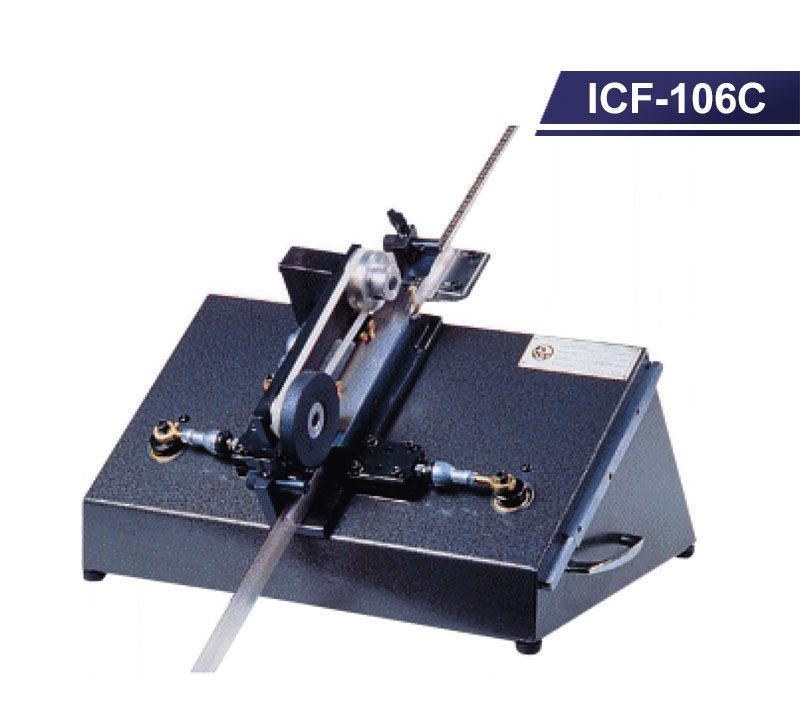

IC Lead Forming Cutting Machine punching method
Three purposes: Align, Cut (ICF-106C) & Form (ICF-106K)
Power : 110V/60Hz ; 220V/50Hz
Dimension : 500(L)x 400(W)x360(H)mm
Net Weight : 17 kgs
Power : 110V/60Hz ; 220V/50Hz
Dimension : 500(L)x 400(W)x360(H)mm
Net Weight : 17 kgs
- Wide application on the various types of LC., special for 2-PIN in single side (small IC).
- High quality famous-brand motors have low energy consumption.
- Unique feeding jig and gearing system assures the working reliability.
- Stable dimension is controlled by the Punching operation.
- "Standard Model" 0.3' and 0.6' feeding trails are enclosed. 0.4' and 0.75' are optional.
- ICF-106C and ICF-106K are "Customized Models. Please specify the spec. upon the order.
- Welcome to provide your IC spec. for further consultation and quotation.
| A | Body Wdh | 6-20mm |
| H | Lead Length | 4-12.7mm |
| D | Thickness | 3-12.7mm |
| L | Working Width | 0.3",0.4",0.6",0.75" |
| Capacity | 7 sec./tube | |
