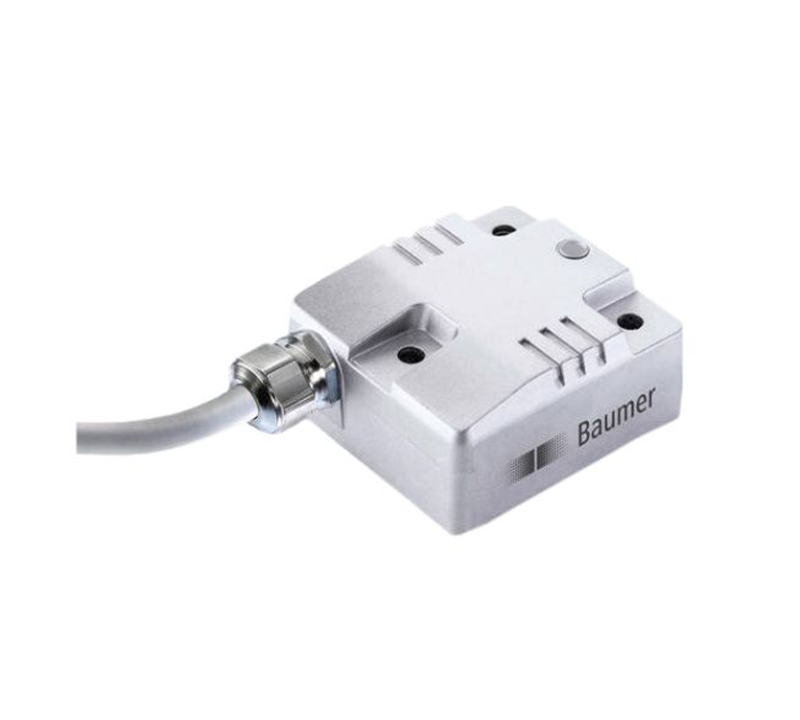

    Inclination sensors Baumer GIM500R-M290.BC6.A

    Technical data - electrical ratings
    Voltage supply 8...36 VDC
    Reverse polarity protection Yes
    Consumption w/o load ≤40 mA (24 VDC)
    Initializing time ≤0.5 s after power on
    Interfaces CANopen®, SAE J1939, Analog (4...20 mA / 0.5...4.5 V / 0...5 V / 0...10 V)
    Load resistor ≥1 kΩ / voltage output
    ≤800 Ω / current output
    Measuring range ±10°/±30°/±45°/±60°/±90°
    Resolution 0.1 ° CANopen®
    0.01 ° SAE J1939
    12 Bit Analog
    Accuracy (+25 °C) Typ. ±0.1°
    Temperature coefficient 0.008 °/K
    Cross-axis-sensitivity typ. 0.3 %
    Repeatability ±0.1 ° (+25 °C)
    Sensing rate 1600 Hz
    Limit frequency 0.1...25 Hz, 2. order / low-pass filter (Default: 5 Hz)
    Interference immunity DIN EN 61000-6-2
    ECE Reg. No. 10R04
    ISO 7637-2
    ISO 11452-2 / ISO 11452-5
    Emitted interference DIN EN 61000-6-4
    ECE Reg. No. 10R04
    ISO 7637-2 / EN 55025
    Programmable parameters Preset and offset
    Filter
    Diagnostic function Parameter error
    Status indicator DUO-LED integrated in housing
    Approval UL approval / E63076
    Technical data - mechanical design
    Dimensions W x H x L 48 x 24 x 52 mm
    Protection DIN EN 60529 IP 66, IP 67, IP 68, IP 69K
    Material Housing: aluminium, coated
    Corrosion protection IEC 60068-2-52 Salt mist for
    ambient conditions C5-M (CX) according to ISO 12944-2
    Operating temperature -40...+85 °C (see general information)
    Resistance DIN EN 60068-2-6 Vibration 20 g, 60-2000 Hz
    DIN EN 60068-2-27 Shock 200 g, 6 ms
    Weight approx. 95 g
    Connection Flange connector M12, 8-pin
    Flange connector M12, 5-pin
    Cable 1 m
    Instruction Use in safety functions exclusively based on Application
    Note and MTTFd reliability prediction (request separately)

    Verification
