    Sensor

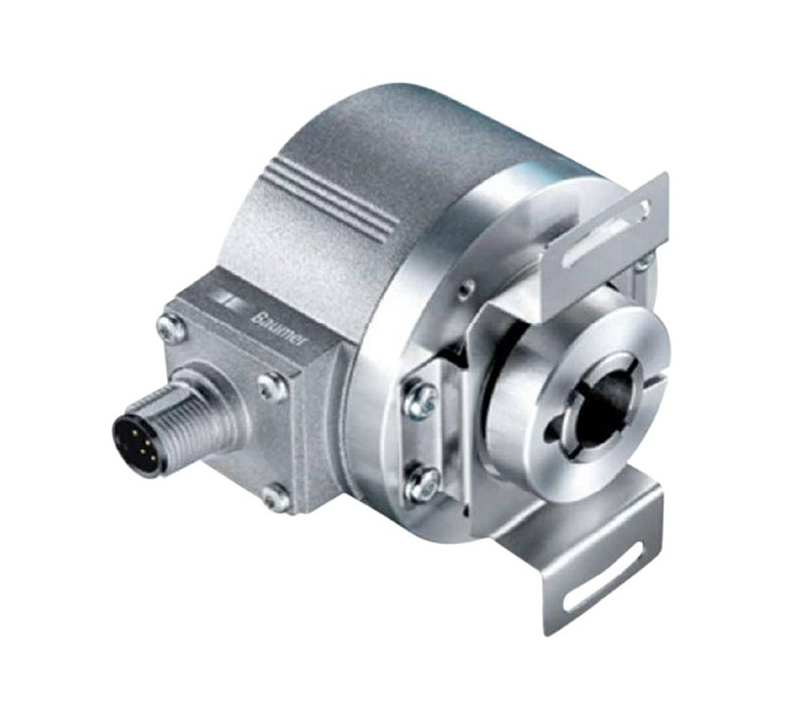

    Incremental encoders Baumer EIL580P-B

    • Size ø58 mm
    • Precise optical sensing (interpolated)
    • Output signal level programmable (TTL or HTL)
    • Blind hollow shaft, ø8…15 mm – Connection axial, radial or tangential
    • Pulses per revolution 1...65536, programmable
    • High protection up to IP 67
    • High resistance to shock and vibrations


    Technical Data - Electrical Ratings
    Voltage Supply 4.75...30 VDC
    Reverse Polarity Protection Yes
    Short-circuit Proof Yes
    Consumption w/o Load ≤70 mA
    Initializing Time ≤30 ms after power on
    Pulses per Revolution 1...65536
    Duty Cycle 45...55 % typical at 1024,
    2048 ppr (further see table Duty cycle)
    Reference Signal Zero pulse 90° or 180°
    Sensing Method Optical
    Output Frequency ≤300 kHz (TTL), ≤160 kHz (HTL)
    Output Signals A+, B+, R+, A-, B-, R-
    Output Stages TTL/RS422, HTL/push-pull
    Programmable Parameters Output level TTL/HTL, Pulse number 1...65536,
    Zero pulse width 90°/180°,
    Zero pulse position,
    Signal sequence
    Interference Immunity DIN EN 61000-6-2
    Emitted Interference DIN EN 61000-6-3
    Approval UL 508 / CSA 22.2
    Technical Data - Mechanical Design
    Size (Flange) ø58 mm
    Shaft Type ø8...15 mm (blind hollow shaft)
    Protection DIN EN 60529 IP 65 (without shaft seal), IP 67 (with shaft seal)
    Operating Speed ≤6000 rpm (+20 °C, IP 67), ≤8000 rpm (+20 °C, IP 65)
    Starting Torque ≤0.02 Nm (+20 °C, IP 65), ≤0.025 Nm (+20 °C, IP 67)
    Materials Housing: aluminium die-cast, Flange: aluminium
    Operating Temperature -40...+100 °C
    Relative Humidity 90% non-condensing
    Resistance DIN EN 60068-2-6 Vibration 30 g,
    10-2000 Hz,
    DIN EN 60068-2-27 Shock 250 g,
    6 ms
    Connection Flange connector M12, 8-pin,
    Flange connector M23,
    12-pin,
    Cable
    Weight Approx. 300 g
