    Sensor

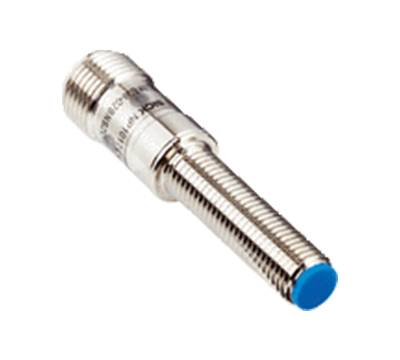

    Inductive proximity sensors SICK IME

    Type:IME08-1B5PSVC0S
    Part no.:1051740
    add to cart Inquiry Now
    Features
    Housing Cylindrical thread design
    Housing Standard
    Thread size M8 x 1
    Diameter Ø 8 mm
    Sensing range Sn 1.5 mm
    Safe sensing range Sa 1.215 mm
    Installation type Flush
    Switching frequency 4,000 Hz
    Connection type Male connector M12, 4-pin
    Switching output PNP
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating IP67 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 %
    Voltage drop ≤ 2 V 1)
    Time delay before availability ≤ 100 ms
    Hysteresis 5 % ... 15 %
    Reproducibility ≤ 2 % 2) 3)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 200 mA
    Short-circuit protection ✔
    Reverse polarity protection ✔
    Power-up pulse protection ✔
    Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +75 °C
    Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
    Sensing face material Plastic, PA 66
    Housing length 52 mm
    Thread length 28 mm
    Tightening torque, max. ≤ 7 Nm
    Items supplied Mounting nut, V2A stainless steel (2x)
    UL File No. NRKH.E181493
    • 1) At Ia max.
    • 2) Ub and Ta constant.
    • 3) Of Sr.
    Safety-related parameters​​​​​​​
    MTTFD 1,735 years
    DCavg 0 %

    Reduction factors
    Note The values are reference values which may vary
    St37 steel (Fe) 1
    Stainless steel (V2A, 304) Approx. 0.8
    Aluminum (Al) Approx. 0.45
    Copper (Cu) Approx. 0.4
    Brass (Br) Approx. 0.4

    Installation note
    Remark Associated graphic see "Installation"
    B 8 mm
    C 8 mm
    D 4.5 mm
    F 12 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
