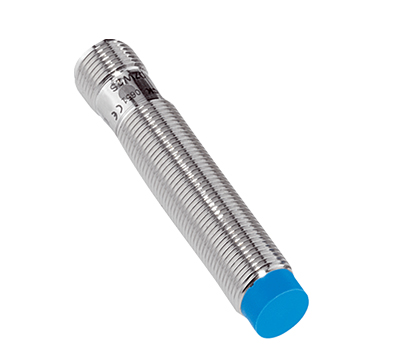

Inductive proximity sensors SICK IME
Type:IME12-08NDSZC0S
Part no.:1067180
Features
| Housing |
Cylindrical thread design |
| Housing |
Standard |
| Thread size |
M12 x 1 |
| Diameter |
Ø 12 mm |
| Sensing range Sn |
8 mm |
| Safe sensing range Sa |
6.48 mm |
| Installation type |
Non-flush |
| Switching frequency |
2,000 Hz |
| Connection type |
Male connector M12, 4-pin |
| Output function |
NO |
| Electrical wiring |
DC 2-wire |
| Enclosure rating |
IP67 1) |
Mechanics/electronics
| Supply voltage |
10 V DC ... 30 V DC |
| Ripple |
≤ 10 % |
| Voltage drop |
≤ 4 V 1)
≤ 4.5 V 2)
|
| Time delay before availability |
≤ 100 ms |
| Hysteresis |
5 % ... 15 % |
| Reproducibility |
≤ 2 % 3) 4) |
| Temperature drift (of Sr) |
± 10 % |
| EMC |
According to EN 60947-5-2 |
| Continuous current Ia |
≤ 100 mA |
| Off-state current |
≤ 0.8 mA |
| Minimum load current |
≥ 3 mA |
| Short-circuit protection |
✔ |
| Reverse polarity protection |
✔ |
| Power-up pulse |
≤ 5 ms |
| Shock and vibration resistance |
30 g, 11 ms/10 Hz ... 55 Hz, 1 mm |
| Ambient operating temperature |
–25 °C ... +75 °C |
| Housing material |
Brass, nickel-plated |
| Sensing face material |
Plastic, PA 66 |
| Housing length |
65 mm |
| Thread length |
43 mm |
| Tightening torque, max. |
≤ 12 Nm |
| Items supplied |
Mounting nut, brass, nickel-plated (2x) |
| UL File No. |
NRKH.E181493 |
Safety-related parameters
| MTTFD |
1,103 years |
| DCavg |
0 % |
| TM (mission time) |
20 years |
Reduction factors
| Note |
The values are reference values which may vary |
| St37 steel (Fe) |
1 |
| Stainless steel (V2A, 304) |
Approx. 0.8 |
| Aluminum (Al) |
Approx. 0.45 |
| Copper (Cu) |
Approx. 0.4 |
| Brass (Br) |
Approx. 0.4 |
Installation note
| Remark |
Associated graphic see "Installation" |
| A |
12 mm |
| B |
24 mm |
| C |
12 mm |
| D |
24 mm |
| E |
16 mm |
| F |
64 mm |
Classifications
| ECl@ss 5.0 |
27270101 |
| ECl@ss 5.1.4 |
27270101 |
| ECl@ss 6.0 |
27270101 |
| ECl@ss 6.2 |
27270101 |
| ECl@ss 7.0 |
27270101 |
| ECl@ss 8.0 |
27270101 |
| ECl@ss 8.1 |
27270101 |
| ECl@ss 9.0 |
27270101 |
| ECl@ss 10.0 |
27270101 |
| ECl@ss 11.0 |
27270101 |
| ETIM 5.0 |
EC002714 |
| ETIM 6.0 |
EC002714 |
| ETIM 7.0 |
EC002714 |
| ETIM 8.0 |
EC002714 |
| UNSPSC 16.0901 |
39122230 |
