    Sensor

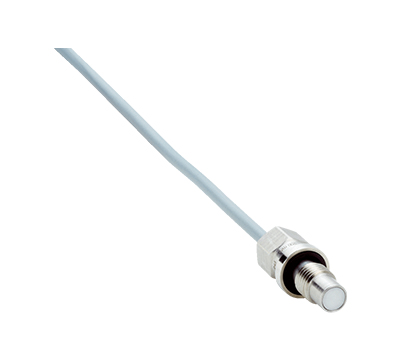

    Inductive proximity sensors SICK IMP

    Type:IMP08-1B5NSVU2S
    Part no.:6050112
    add to cart Inquiry Now
    Features
    Housing Cylindrical thread design
    Thread size M8 x 1
    Diameter Ø 8 mm
    Pressure resistance ≤ 500 bar
    Sensing range Sn 1.5 mm
    Safe sensing range Sa 1.2 mm
    Installation type Flush
    Switching frequency 800 Hz
    Connection type Cable, 3-wire, 2 m
    Switching output NPN
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating IP68 1)
    Special features High pressure resistant, Temperature resistance
    Special applications Hydraulic application
    • 1) Sensing face.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 20 % 1)
    Voltage drop ≤ 2 V 2)
    Time delay before availability ≤ 30 ms
    Hysteresis 1 % ... 15 % 3)
    Reproducibility ≤ 5 % 4) 5)
    Temperature drift (of Sr)

    ± 10 % 6)

    ± 15 % 7)
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 200 mA
    Vacuum resistance 10-8 Torr 8)
    Size support ring 9.9 mm x 6.6 mm x 1 mm
    Cable material PUR
    Conductor size 0.14 mm²
    Cable diameter Ø 3.5 mm
    Short-circuit protection ✔
    Reverse polarity protection ✔
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +100 °C
    Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
    Sensing face material Ceramics, ZrO2
    Material, supporting ring FPM
    Housing length 30 mm
    Thread length 6 mm
    Tightening torque, max. ≤ 12 Nm
    • 1) Of VS.
    • 2) With Ia = 200 mA.
    • 3) Typ. 8%.
    • 4) Ub = 20 ... 30 VDC.
    • 5) Ta = 23 °C ± 5 °C.
    • 6) –25 °C ... +70 °C.
    • 7) +70 °C…+100 °C.
    • 8) Front.
    Safety-related parameters
    MTTFD 171 years
    TM (mission time) 20 years

    Reduction factors
    Note The values are reference values which may vary
    St37 steel (Fe) 1
    Stainless steel (V2A, 304) Approx. 0.66
    Aluminum (Al) Approx. 0.26
    Copper (Cu) Approx. 0.22
    Brass (Br) Approx. 0.39

    Installation note
    Remark Associated graphic see "Installation"
    B 6 mm
    C 8 mm
    D 4.5 mm
    F 12 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
