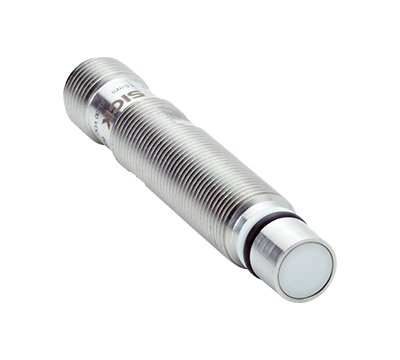

    Inductive proximity sensors SICK IMP

    Type:IMP12-1B5NPVC0D
    Part no.:6050130
    add to cart Inquiry Now
    Features
    Housing Cylindrical thread design
    Thread size M12 x 1
    Diameter Ø 12 mm
    Pressure resistance ≤ 500 bar
    Sensing range Sn 1.5 mm
    Safe sensing range Sa 1.2 mm
    Installation type Flush
    Switching frequency 600 Hz
    Connection type Male connector M12, 4-pin
    Switching output NPN
    Output function Complementary
    Electrical wiring DC 4-wire
    Enclosure rating IP68 1)
    Special features High pressure resistant, Temperature resistance
    Special applications Hydraulic application
    • 1) Sensing face.
    Mechanics/electronics​​​​​​​
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 20 % 1)
    Voltage drop ≤ 2 V 2)
    Time delay before availability ≤ 50 ms
    Hysteresis 1 % ... 15 % 3)
    Reproducibility ≤ 7 % 4) 5)
    Temperature drift (of Sr)

    ± 10 % 6)

    ± 15 % 7)
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 200 mA
    Vacuum resistance 10-8 Torr 8)
    Large sealing ring 5.3 mm x 2.4 mm
    Size support ring 10 mm x 5.9 mm x 1 mm
    Short-circuit protection ✔
    Reverse polarity protection ✔
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +100 °C
    Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
    Sensing face material Ceramics, ZrO2
    Sealing ring material FPM
    Housing length 78 mm
    Thread length 42 mm
    Tightening torque, max. ≤ 40 Nm
    • 1) Of VS.
    • 2) With Ia = 200 mA.
    • 3) Typ. 8%.
    • 4) Ub = 20 ... 30 VDC.
    • 5) Ta = 23 °C ± 5 °C.
    • 6) –25 °C ... +70 °C.
    • 7) +70 °C…+100 °C.
    • 8) Front.
    Reduction factors​​​​​​​
    Note The values are reference values which may vary
    St37 steel (Fe) 1
    Stainless steel (V2A, 304) Approx. 0.75
    Aluminum (Al) Approx. 0.2
    Copper (Cu) Approx. 0.12
    Brass (Br) Approx. 0.34

    Installation note
    Remark Associated graphic see "Installation"
    B 8 mm
    C 12 mm
    D 6 mm
    F 12 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
