Sensor

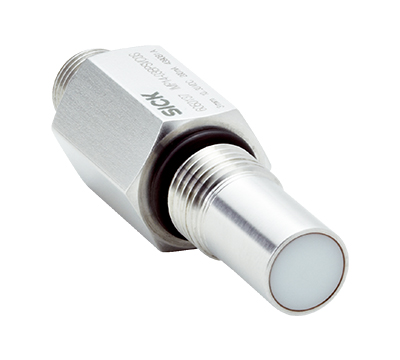

Inductive proximity sensors SICK IMP
Type:IMP14-03BNSVC0S
Part no.:6050139
Features
| Housing |
Cylindrical thread design |
| Thread size |
M14 x 1.5 |
| Diameter |
Ø 14 mm |
| Pressure resistance |
≤ 500 bar |
| Sensing range Sn |
3 mm |
| Safe sensing range Sa |
2.4 mm |
| Installation type |
Flush |
| Switching frequency |
500 Hz |
| Connection type |
Male connector M12, 4-pin |
| Switching output |
NPN |
| Output function |
NO |
| Electrical wiring |
DC 3-wire |
| Enclosure rating |
IP68 1) |
| Special features |
High pressure resistant |
| Special applications |
Hydraulic application |
Mechanics/electronics
| Supply voltage |
10 V DC ... 30 V DC |
| Ripple |
≤ 20 % 1) |
| Voltage drop |
≤ 2 V 2) |
| Time delay before availability |
≤ 50 ms |
| Hysteresis |
1 % ... 15 % 3) |
| Reproducibility |
≤ 4 % 4) 5) |
| Temperature drift (of Sr) |
15 % |
| EMC |
According to EN 60947-5-2 6) |
| Continuous current Ia |
≤ 200 mA |
| Vacuum resistance |
10-8 Torr 7) |
| Large sealing ring |
11.5 mm x 2.0 mm |
| Short-circuit protection |
✔ |
| Reverse polarity protection |
✔ |
| Shock and vibration resistance |
30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature |
–25 °C ... +80 °C |
| Housing material |
Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Sensing face material |
Ceramics, ZrO2 |
| Sealing ring material |
NBR |
| Housing length |
65 mm |
| Thread length |
11 mm |
| Tightening torque, max. |
≤ 70 Nm |
Safety-related parameters
| MTTFD |
156 years |
| TM (mission time) |
20 years |
Reduction factors
| Note |
The values are reference values which may vary |
| St37 steel (Fe) |
1 |
| Stainless steel (V2A, 304) |
Approx. 0.85 |
| Aluminum (Al) |
Approx. 0 |
| Copper (Cu) |
Approx. 0 |
| Brass (Br) |
Approx. 0.15 |
Installation note
| Remark |
Associated graphic see "Installation" |
| B |
12 mm |
| C |
14 mm |
| D |
9 mm |
| F |
20 mm |
Classifications
| ECl@ss 5.0 |
27270101 |
| ECl@ss 5.1.4 |
27270101 |
| ECl@ss 6.0 |
27270101 |
| ECl@ss 6.2 |
27270101 |
| ECl@ss 7.0 |
27270101 |
| ECl@ss 8.0 |
27270101 |
| ECl@ss 8.1 |
27270101 |
| ECl@ss 9.0 |
27270101 |
| ECl@ss 10.0 |
27270101 |
| ECl@ss 11.0 |
27270101 |
| ETIM 5.0 |
EC002714 |
| ETIM 6.0 |
EC002714 |
| ETIM 7.0 |
EC002714 |
| ETIM 8.0 |
EC002714 |
| UNSPSC 16.0901 |
39122230 |
