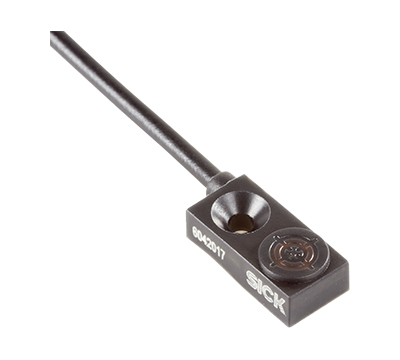

    Inductive proximity sensors SICK IQM

    Type:IQ04-1B5POKW2S
    Part no.:6042018
    add to cart Inquiry Now
    Features
    Housing Rectangular
    Dimensions (W x H x D) 8 mm x 16 mm x 4 mm
    Sensing range Sn 1.5 mm
    Safe sensing range Sa 1.215 mm
    Installation type Flush
    Switching frequency 600 Hz
    Connection type Cable, 3-wire, 2 m
    Switching output PNP
    Output function NC
    Electrical wiring DC 3-wire
    Enclosure rating IP67 1)
    • 1) According to EN 60529.
    Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 % 1)
    Voltage drop < 1.5 V 2)
    Time delay before availability ≤ 10 ms
    Hysteresis 1 % ... 15 %
    Reproducibility ± 1 % 3) 4)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 100 mA
    Cable material PVC
    Conductor size 0.09 mm²
    Cable diameter Ø 2.5 mm
    Short-circuit protection ✔
    Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +70 °C
    Housing material Plastic, PA6
    Sensing face material Plastic, PA6
    Tightening torque, max. 0.06 Nm
    • 1) Of VS.
    • 2) At Ia max.
    • 3) Ub and Ta constant.
    • 4) Of Sr.
    Safety-related parameters​​​​​​​
    MTTFD 1,328 years
    TM (mission time) 20 years

    Reduction factors
    Note The values are reference values which may vary
    Stainless steel (V2A, 304) Approx. 0.7
    Aluminum (Al) Approx. 0.4
    Copper (Cu) Approx. 0.3
    Brass (Br) Approx. 0.4

    Installation note
    Remark Associated graphic see "Installation"
    A 0 mm
    B 16 mm
    C 8 mm
    D 4.5 mm
    E 0 mm
    F 24 mm

    Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ECl@ss 10.0 27270101
    ECl@ss 11.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    ETIM 7.0 EC002714
    ETIM 8.0 EC002714
    UNSPSC 16.0901 39122230
