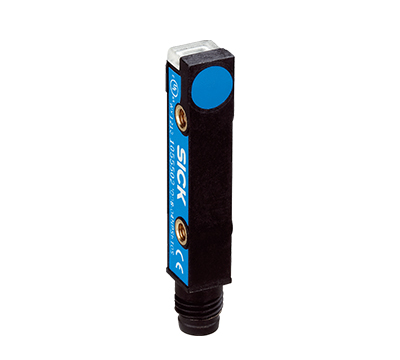

Inductive proximity sensors SICK IQY
Type:IQ08-02BPOKT0S
Part no.:1055495
Features
| Housing |
Rectangular |
| Dimensions (W x H x D) |
8 mm x 40 mm x 8 mm |
| Sensing range Sn |
2 mm |
| Safe sensing range Sa |
1.62 mm |
| Installation type |
Flush |
| Switching frequency |
2,000 Hz |
| Connection type |
Connector M8, 3-pin |
| Switching output |
PNP |
| Output function |
NC |
| Electrical wiring |
DC 3-wire |
| Enclosure rating |
IP67, IP68 1) |
Mechanics/electronics
| Supply voltage |
10 V DC ... 30 V DC |
| Ripple |
≤ 10 % 1) |
| Voltage drop |
≤ 2 V 2) |
| Time delay before availability |
≤ 100 ms |
| Hysteresis |
5 % ... 15 % |
| Reproducibility |
≤ 2 % 3)
4)
|
| Temperature drift (of Sr) |
± 10 % |
| EMC |
According to EN 60947-5-2 |
| Continuous current Ia |
≤ 200 mA |
| Short-circuit protection |
✔ |
| Reverse polarity protection |
✔ |
| Power-up pulse protection |
✔ |
| Shock and vibration resistance |
30 g, 11 ms / 10 ... 55 Hz, 1 mm |
| Ambient operating temperature |
–25 °C ... +75 °C |
| Housing material |
Plastic, VISTAL® |
| Sensing face material |
Plastic, VISTAL® |
| Tightening torque, max. |
≤ 1.5 Nm |
| UL File No. |
NRKH.E348498 |
Safety-related parameters
| MTTFD |
1,775 years |
| DCavg |
0 % |
Reduction factors
| Note |
The values are reference values which may vary |
| Stainless steel (V2A, 304) |
Approx. 0.7 |
| Aluminum (Al) |
Approx. 0.3 |
| Copper (Cu) |
Approx. 0.2 |
| Brass (Br) |
Approx. 0.3 |
Installation note
| Remark |
Associated graphic see "Installation" |
| A |
0 mm |
| B |
10 mm |
| C |
8 mm |
| D |
6 mm |
| E |
0 mm |
| F |
16 mm |
| G |
0 mm |
Classifications
| ECl@ss 5.0 |
27270101 |
| ECl@ss 5.1.4 |
27270101 |
| ECl@ss 6.0 |
27270101 |
| ECl@ss 6.2 |
27270101 |
| ECl@ss 7.0 |
27270101 |
| ECl@ss 8.0 |
27270101 |
| ECl@ss 8.1 |
27270101 |
| ECl@ss 9.0 |
27270101 |
| ECl@ss 10.0 |
27270101 |
| ECl@ss 11.0 |
27270101 |
| ETIM 5.0 |
EC002714 |
| ETIM 6.0 |
EC002714 |
| ETIM 7.0 |
EC002714 |
| ETIM 8.0 |
EC002714 |
| UNSPSC 16.0901 |
39122230 |
