    Sensor

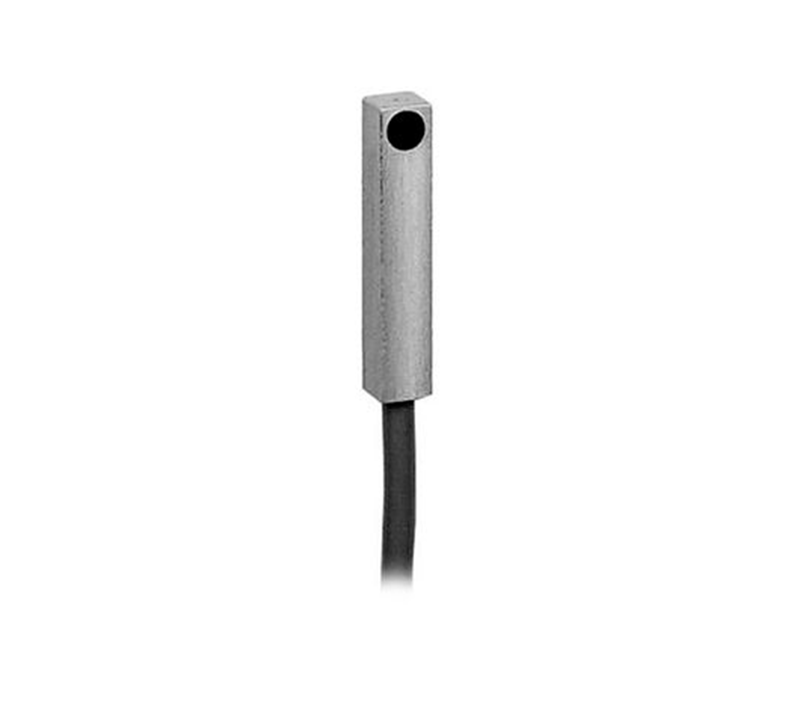

    Inductive proximity switch Baumer IFFM 04P1501/O1L

    General Data
    Mounting Type Flush
    Nominal Sensing Distance Sn 0.8 mm
    Hysteresis 2 ... 20 % of Sr
    Output Indicator LED red (backside)
    Electrical Data
    Switching Frequency < 3 kHz
    Voltage Supply Range +Vs 10 ... 30 VDC
    Current Consumption Max. (no load) 12 mA
    Output Circuit PNP make function (NO)
    Voltage Drop Vd < 2 VDC
    Output Current < 100 mA
    Short Circuit Protection Yes
    Reverse Polarity Protection Yes
    Mechanical Data
    Type Rectangular
    Material (Sensing Face) EP
    Housing Material Stainless steel
    Dimension 4 mm
    Housing Length 22 mm
    Connection Types Cable, 2 m
    Ambient Conditions
    Operating Temperature -25 ... +75 °C
    Protection Class IP 67
