Sensor

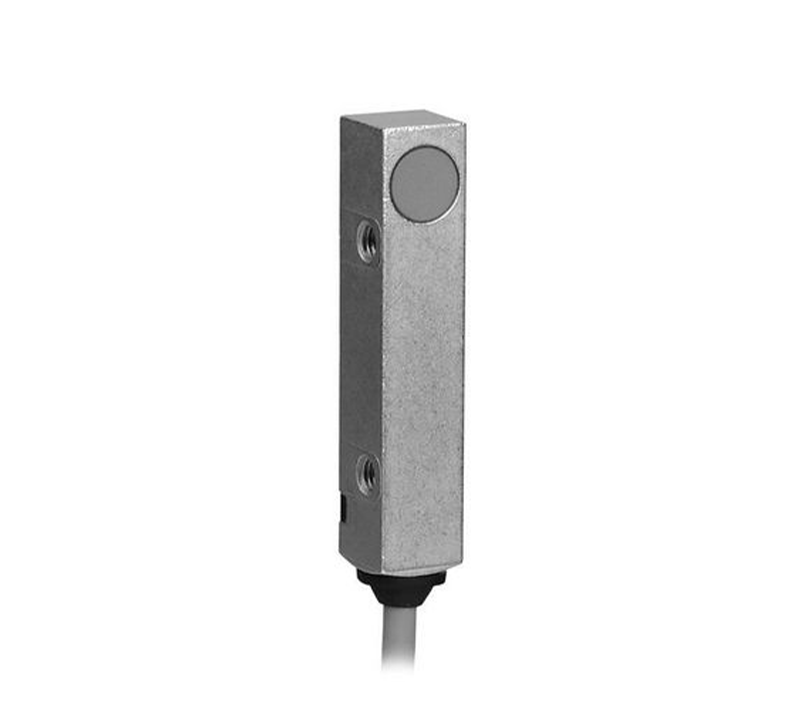

Inductive proximity switch Baumer IFFM 08P1701/O1L
| General Data |
| Mounting Type |
Flush |
| Nominal Sensing Distance Sn |
2 mm |
| Hysteresis |
3 ... 20 % of Sr |
| Output Indicator |
LED red |
| Electrical Data |
| Switching Frequency |
< 5 kHz |
| Voltage Supply Range +Vs |
10 ... 30 VDC |
| Current Consumption Max. (no load) |
12 mA |
| Output Circuit |
PNP make function (NO) |
| Voltage Drop Vd |
< 2 VDC |
| Output Current |
< 200 mA |
| Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Mechanical Data |
| Type |
Rectangular |
| Material (Sensing Face) |
PBT |
| Housing Material |
Die-cast zinc nickel plated |
| Dimension |
8 mm |
| Housing Length |
38.5 mm |
| Connection Types |
Cable, 2 m |
| Ambient Conditions |
| Operating Temperature |
-25 ... +75 °C |
| Protection Class |
IP 67 |
