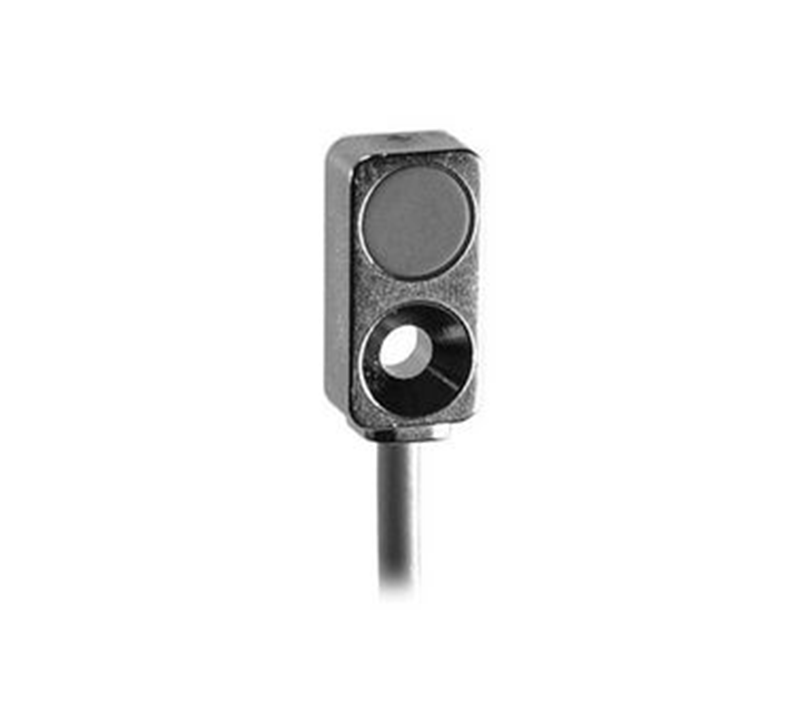

    Inductive proximity switch Baumer IFFM 08P17A6/L

    General Data
    Mounting type Flush
    Nominal sensing distance Sn 2 mm
    Hysteresis 2 ... 20 % of Sr
    Output indicator LED red
    Electrical Data
    Switching frequency < 5 kHz
    Voltage supply range +Vs 10 ... 30 VDC
    Current consumption max. (no load) 12 mA
    Output circuit PNP make function (NO)
    Voltage drop Vd < 2 VDC
    Output current < 100 mA
    Short circuit protection Yes
    Reverse polarity protection Yes
    Mechanical Data
    Type Rectangular
    Material (sensing face) PBT
    Housing material Die-cast zinc nickel plated
    Dimension 8 mm
    Housing length 16 mm
    Connection types Cable, 2 m
    Ambient Conditions
    Operating temperature -25 ... +75 °C
    Protection class IP 67
