Sensor

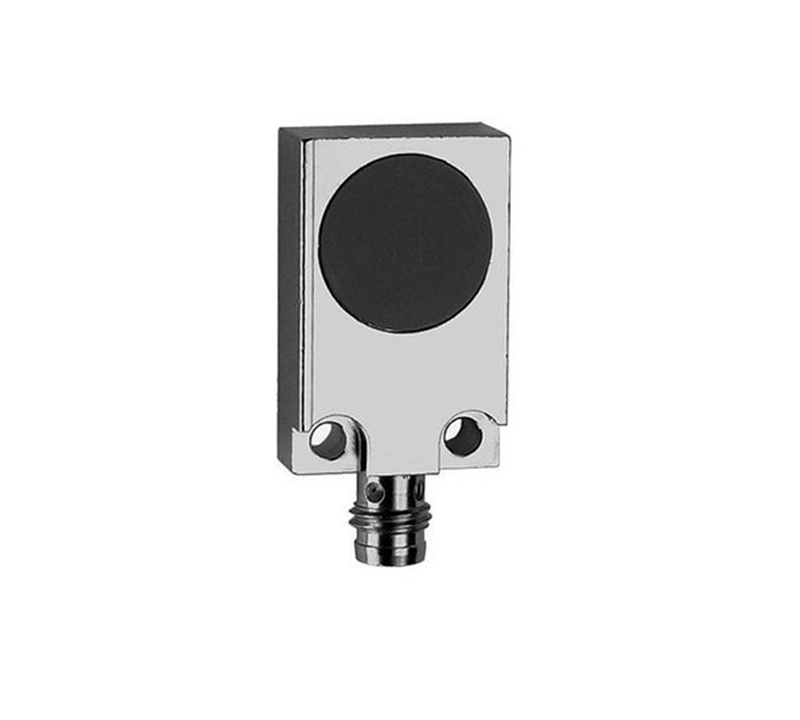

Inductive proximity switch Baumer IFFM 20P1501/S35L
| General Data |
| Mounting Type |
Flush |
| Nominal Sensing Distance Sn |
5 mm |
| Hysteresis |
3 ... 20 % of Sr |
| Output Indicator |
4 port LED red |
| Electrical Data |
| Switching Frequency |
< 1 kHz |
| Voltage Supply Range +Vs |
10 ... 50 VDC |
| Current Consumption Max. (no load) |
10 mA |
| Output Circuit |
PNP make function (NO) |
| Voltage Drop Vd |
< 3 VDC |
| Output Current |
< 200 mA |
| Short Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Mechanical Data |
| Type |
Rectangular |
| Material (Sensing Face) |
PBT |
| Housing Material |
Brass nickel plated |
| Dimension |
20 mm |
| Housing Length |
32 mm |
| Connection Types |
Connector M8 |
| Ambient Conditions |
| Operating Temperature |
-25 ... +75 °C |
| Protection Class |
IP 67 |
