    Sensor

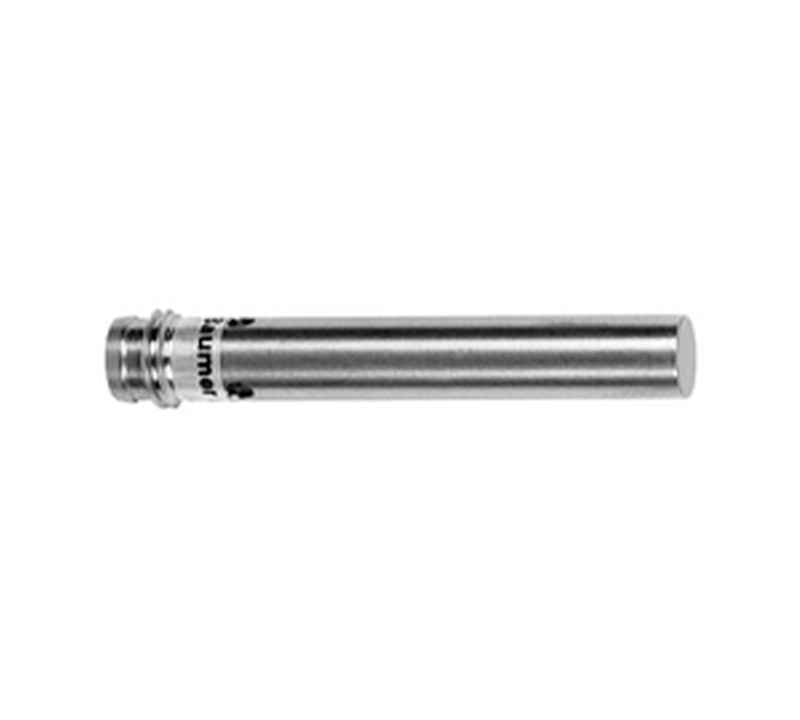

    Inductive proximity switch Baumer IFRM 06P17A1/S35L


    General Data
    Mounting Type Flush
    Nominal Sensing Distance Sn 2 mm
    Hysteresis 3 ... 20 % of Sr
    Output Indicator 3 port LED red
    Electrical Data
    Switching Frequency < 5 kHz
    Voltage Supply Range +Vs 10 ... 30 VDC
    Current Consumption Max. (no load) 12 mA
    Output Circuit PNP make function (NO)
    Voltage Drop Vd < 2 VDC
    Output Current < 200 mA
    Short Circuit Protection Yes
    Reverse Polarity Protection Yes
    Mechanical Data
    Type Cylindrical smooth
    Material (Sensing Face) PBT
    Housing Material Stainless steel
    Dimension 6,5 mm
    Housing Length 46 mm
    Connection Types Connector M8
    Ambient Conditions
    Operating Temperature -25 ... +75 °C
    Protection Class IP 67
