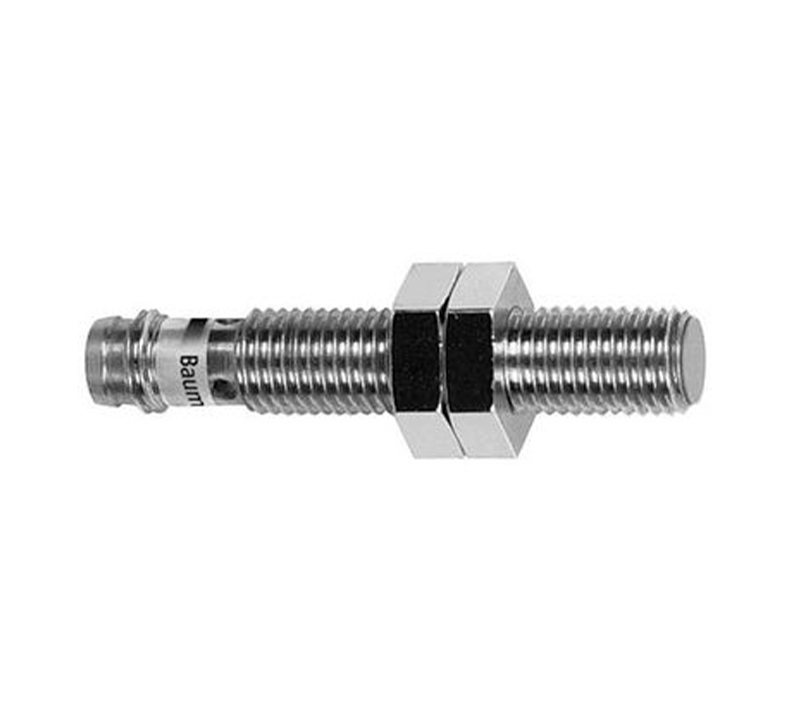

Inductive proximity switch Baumer IFRM 08P17A1/S35L
| General Data |
| Mounting type |
Flush |
| Nominal sensing distance Sn |
2 mm |
| Hysteresis |
2 ... 20 % of Sr |
| Output indicator |
LED red |
| Electrical Data |
| Switching frequency |
< 5 kHz |
| Voltage supply range +Vs |
10 ... 30 VDC |
| Current consumption max. (no load) |
12 mA |
| Output circuit |
PNP make function (NO) |
| Voltage drop Vd |
< 2 VDC |
| Output current |
< 100 mA |
| Short circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Mechanical Data |
| Type |
Rectangular |
| Material (sensing face) |
PBT |
| Housing material |
Die-cast zinc nickel plated |
| Dimension |
8 mm |
| Housing length |
16 mm |
| Connection types |
Cable, 2 m |
| Ambient Conditions |
| Operating temperature |
-25 ... +75 °C |
| Protection class |
IP 67 |
