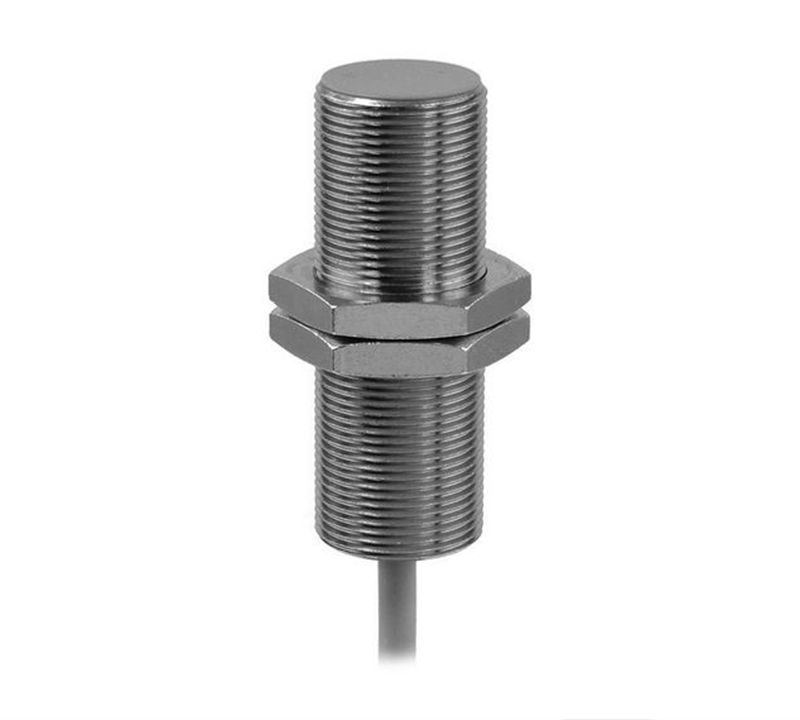

    Inductive proximity switch Baumer IFRM 18P17A3/L

    General Data
    Mounting Type Quasi-flush
    Nominal Sensing Distance Sn 8 mm
    Hysteresis 3 ... 20 % of Sr
    Output Indicator LED red
    Electrical Data
    Switching Frequency < 500 Hz
    Voltage Supply Range +Vs 10 ... 30 VDC
    Current Consumption Max. (no load) 10 mA
    Output Circuit PNP make function (NO)
    Voltage Drop Vd < 2 VDC
    Output Current < 200 mA
    Short Circuit Protection Yes
    Reverse Polarity Protection Yes
    Mechanical Data
    Type Cylindrical threaded
    Material (Sensing Face) PBT
    Housing Material Brass nickel plated
    Dimension 18 mm
    Housing Length 50 mm
    Connection Types Cable, 2 m
    Tightening Torque Max. 40 Nm
    Ambient Conditions
    Operating Temperature -25 ... +75 °C
    Protection Class IP 67
