    Sensor

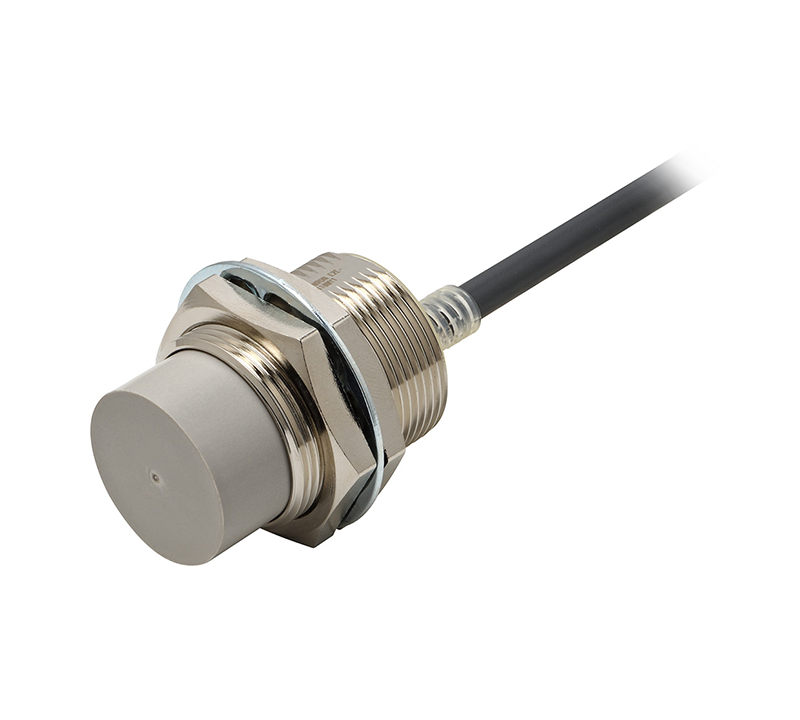

    Inductive Sensor Break Contact Omron E2E-X18MY2 2M OMS

    Proximity Sensor, Cylinder type (with screw), Sensing distance: 18 mm, Unshielded, AC 2-wire, NC, Pre-wired model, Standard PVC cable (oil resistant), 2 m

    Sensing head size M30
    Type Cylinder type (with screw), Unshielded
    Power source AC 2-wire models
    Sensing distance 18 mm ±10%
    Setting distance 0 to 14 mm
    Differential distance 10% max. of sensing distance
    Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
    Standard sensing object Iron 54 x 54 x 1 mm
    Response frequency 25 Hz
    Power supply voltage 24 to 240 VAC
    Operating voltage range 20 to 264 VAC
    Leakage current 1.7 mA max.
    Control output (Switching capacity) 5 to 300 mA
    Indicator Operation indicator (red)
    Operation mode NC
    Protective circuit Surge suppressor
    Ambient temperature (Operating) -40 to 85 ℃(with no freezing or condensation)
    Ambient temperature (Storage) -40 to 85 ℃(with no freezing or condensation)
    Ambient humidity (Operating) 35 to 95 % (with no condensation)
    Ambient humidity (Storage) 35 to 95 % (with no condensation)
    Temperature influence ±15% max. of sensing distance at 23 ℃ in the temperature range of -40 to 85 ℃
    ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
    Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
    Insulation resistance Between charged parts and the case: 50 MΩ min. at 500 VDC
    Dielectric strength Between charged parts and the case: 4,000 VAC 50/60 Hz 1 min
    Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
    Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
    Degree of protection IEC: IP67
    Company standard: Oil-proof
    Connection method Pre-wired models (2 m)
    Weight Package: Approx. 175 g
    Material Case: Brass nickel plating
    Sensing surface: Polybutylene terephthalate (PBT)
    Cable: PVC
    Clamping nuts: Brass nickel plating
    Toothed washers: Iron zinc plating
    Accessories Instruction manual, Clamping nuts, Toothed washers
