Sensor

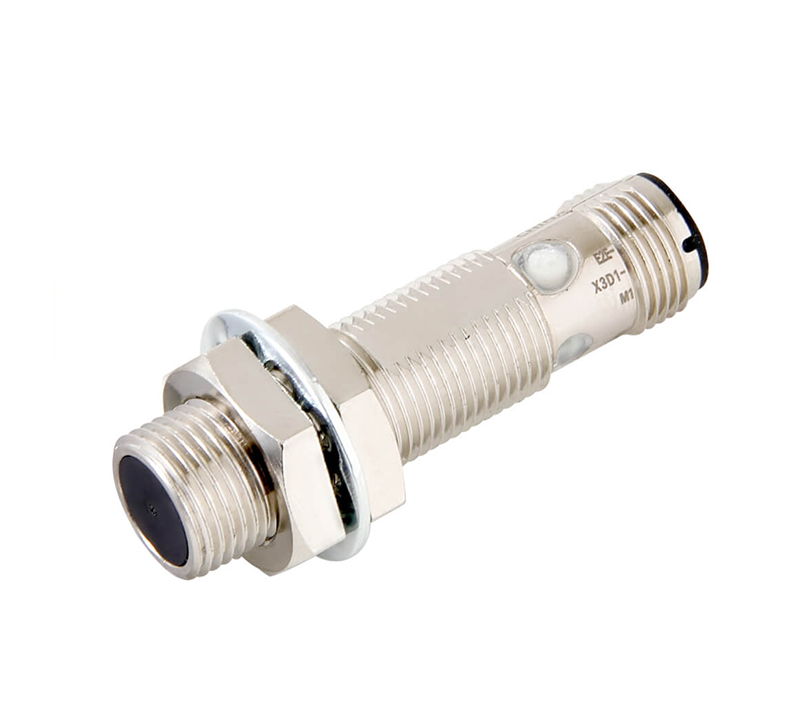

Inductive Sensor Break Contact Omron E2E-X4B3D12-M1 OMS
Proximity sensor, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, PNP NO+NC, IO-Link COM2, M12 connector
| Size | M12 |
| Mounting type | Quasi-flush |
| Sensing distance | 4 mm |
| Overall length of sensor | 48 mm |
| Thread length | 29 mm |
| Material housing | Brass, nickel plated |
| Output type | IO-Link, PNP |
| Operation mode | NO + NC |
| Connection method | Connector M12 |
| Cable specifications | - |
| IO-Link function | |
| IO-Link baud rate | COM2 (38.4 kbps) |
| Degree of protection (IP) | IP67/IP69K |
