Sensor

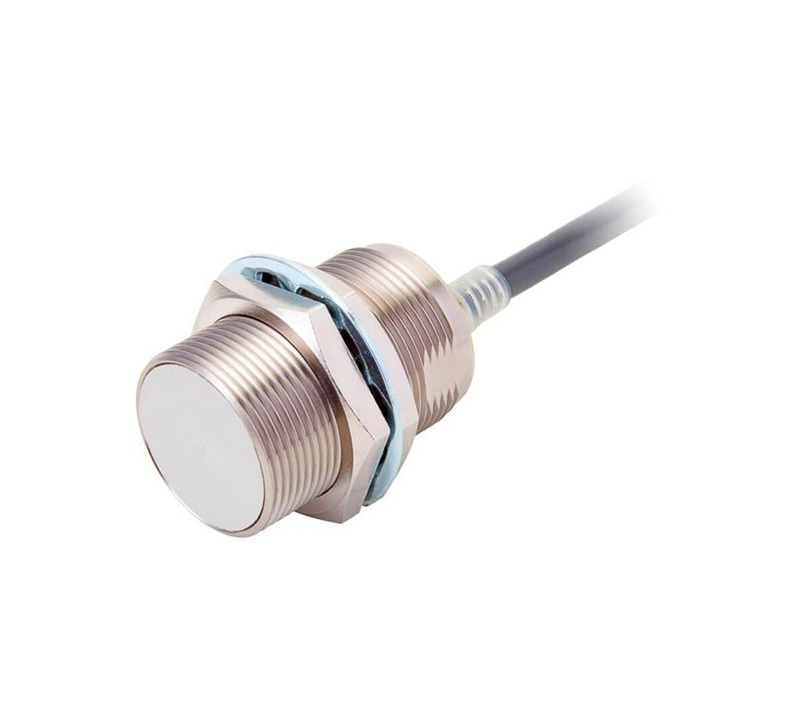

Inductive Sensor Make Contact Omron E2E-X10D1-N 2M OMS
| Shape |
Screw Type |
Detection distance L1 [classification](mm) |
~10 |
| Detected Objects |
Magnetic Metal |
Operating Environment |
Standard / Oil Resistance Reinforcement / Cold Resistance |
| Shielded / Non-shielded |
Shield Type |
Detection Direction |
Front Surface |
| Case Material |
Brass Nickel Plated |
Detecting Surface Material |
Polybutylene Terephthalate |
| Amplifier |
Amplifier Built-in Type |
Screw Detection Head Size |
M30 |
| Head size Depth (range)(mm) |
40.1~50 |
Head size Depth(mm) |
43 |
| Acquired Standards |
CE / IEC |
Protection Structure (IEC) |
IP67 |
| Types |
Standard type |
Power Type |
Direct Current 2-Wire Type |
| Power Supply Voltage |
12-24 VDC |
Output Mode |
DC 2-wire polarized |
| Operation Mode |
NO |
Connection Method |
Pre-wired model |
| Connector pin arrangement |
- |
Cable Length(m) |
2 |
| Different Frequency Type |
Standard |
Cable Specifications |
Vinyl (PVC)-insulated round cord, φ6, 2-core/3-core |
| Included functions |
- |
Combination amplifier/head |
- |
| Detection distance L1 details(mm) |
10 |
Connector specifications |
- |
| Self-diagnosis output function |
- |
Standard sensing object |
- |
| Model details |
- |
Body size |
- |
