Sensor

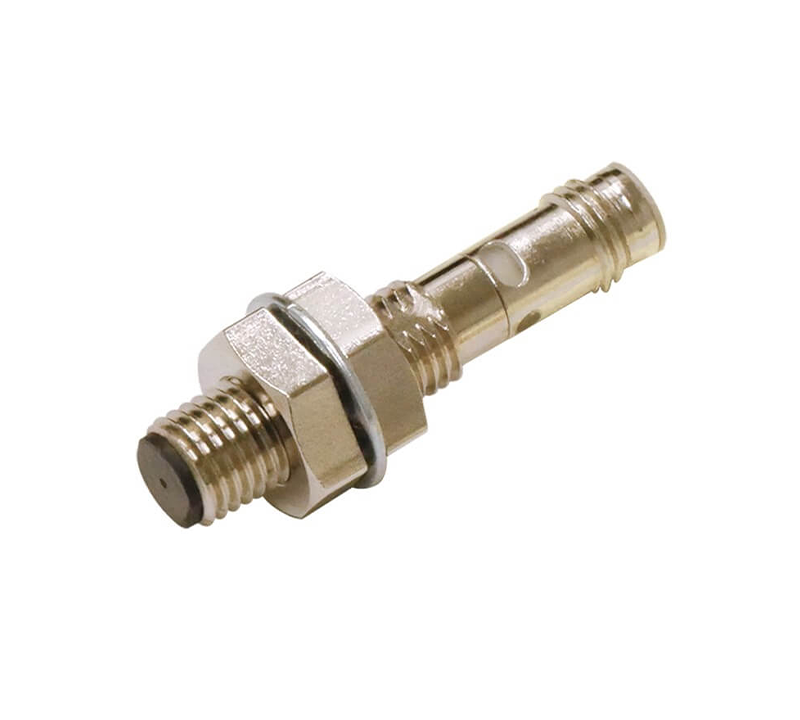

Inductive Sensor Make Contact Omron E2E-X1R5B1T8-M3
Proximity sensor, inductive, SUS short body, M8, shielded, 1.5 mm, DC, 3-wire, PNP NO, IO-Link COM3, M8 connector 4 pins
| Size | M8 |
| Mounting type | Flush |
| Sensing distance | 1.5 mm |
| Overall length of sensor | 39 mm |
| Thread length | 22 mm |
| Material housing | Stainless steel |
| Output type | IO-Link, PNP |
| Operation mode | NO |
| Connection method | Connector M8 - 4 pin |
| Cable specifications | - |
| IO-Link function | V |
| IO-Link baud rate | COM3 (230.4 kbps) |
| Degree of protection (IP) | IP67/IP69K |
